Special topic

The Chess-Clock Flag

The falling flag did not change how time was measured. It changed how time expiration could be proved.

The Flag – A Hallmark Moment for Competitive ChessFrom the Collection of Daniel Jones

The Evidentiary Problem

Before flags, the critical moment at the time limit could be ambiguous. A minute hand near the deadline left room for argument: had the allotted time actually expired? In severe time pressure, a small uncertainty could decide a game.

Visual record

The Flag – A Hallmark Moment for Competitive Chess

The Flag – A Hallmark Moment for Competitive ChessFrom the Collection of Daniel Jones
The Flag – A Hallmark Moment for Competitive Chess

Meijer's 1899 Solution

Dutch chess official Hendrik Diderik Berhard Meijer introduced the chess-clock flag in 1899. As the minute hand approached the limit, it lifted a small flag; once the hand passed, gravity caused the flag to fall.

Gradual Adoption

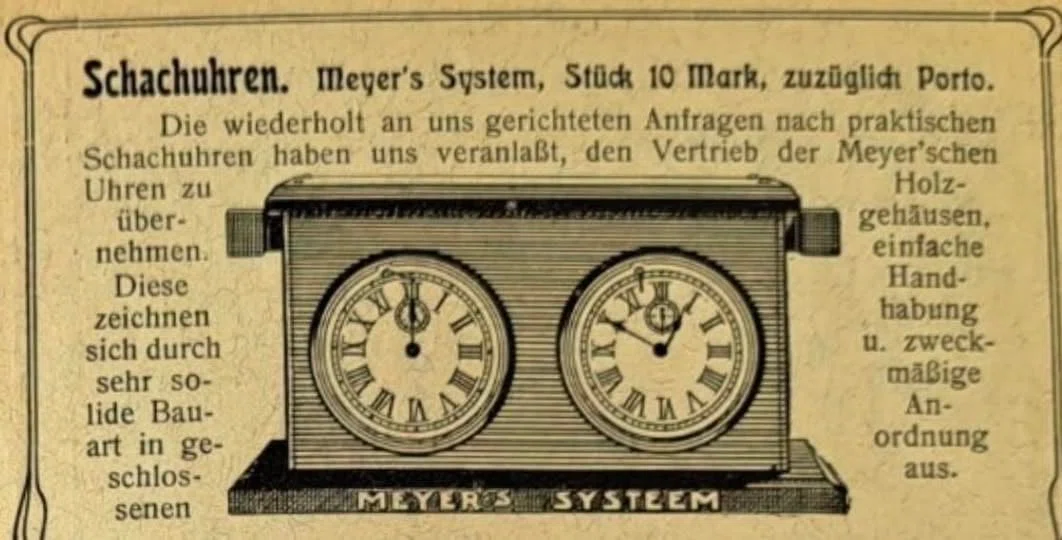

The solution was simple but not instantly universal. A 1910 advertisement promoted 'Meyer's System,' while Jaques did not make flags standard until 1917. The mechanical idea had to win acceptance just like the chess clock itself.

Alternative Signals

Other makers tried more elaborate answers. A 1930s Jockey Club Córdoba clock used a red disk during the final quarter-hour and a bell at expiration. A postwar German SV Seesen clock used a similar disk and a hard mechanical click.

Visual record

When the Flag Wasn’t Inevitable

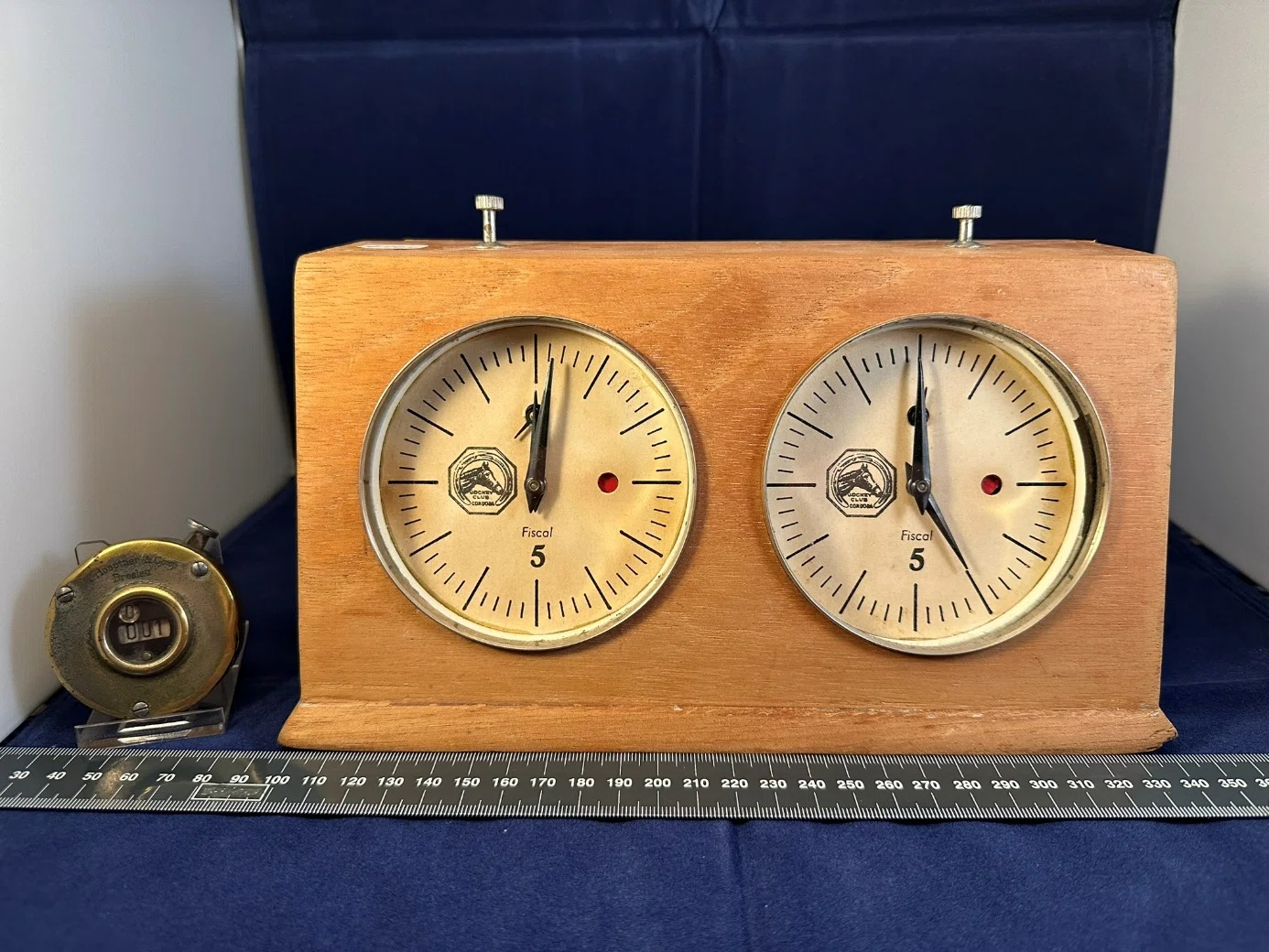

Argentina — Jockey Club Córdoba, 1930s Red disk appeared in the final quarter-hour; built-in bell rang at expiration.From the Collection of John Van Veen

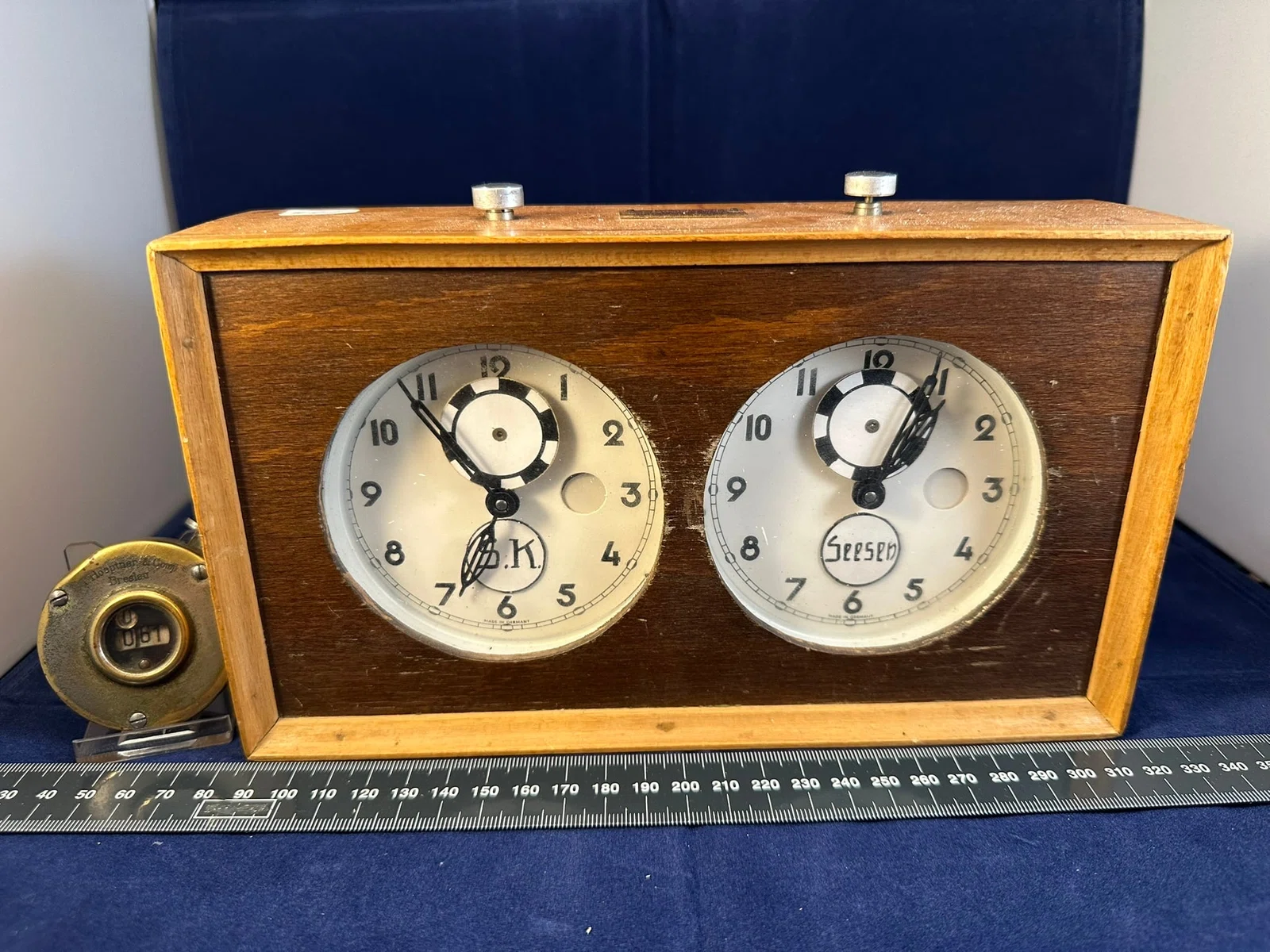

Germany — SV Seesen, postwar Similar disk indicator near the 3; hard mechanical click replaced the bell.From the Collection of John Van Veen

The American Buzzer Experiment

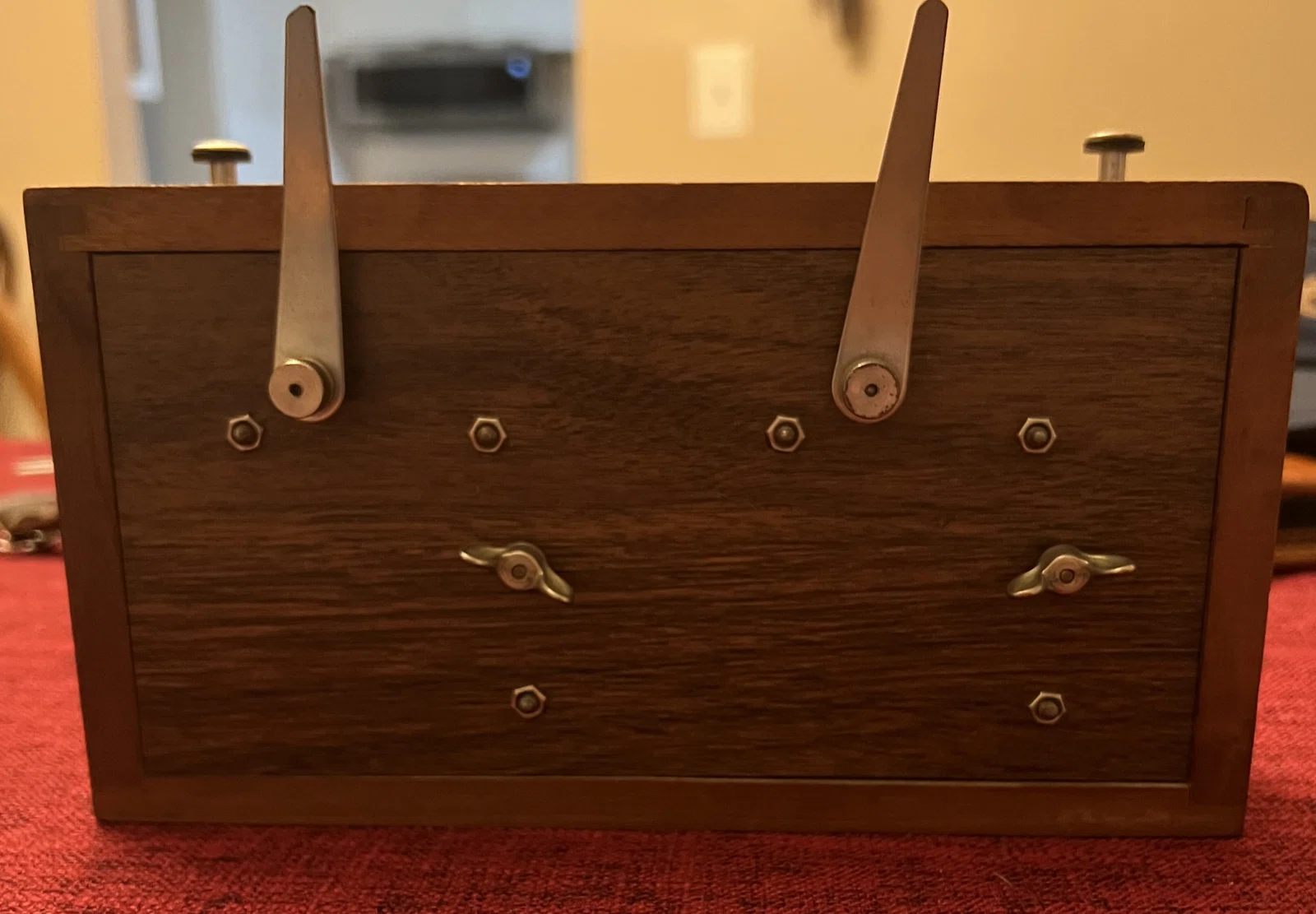

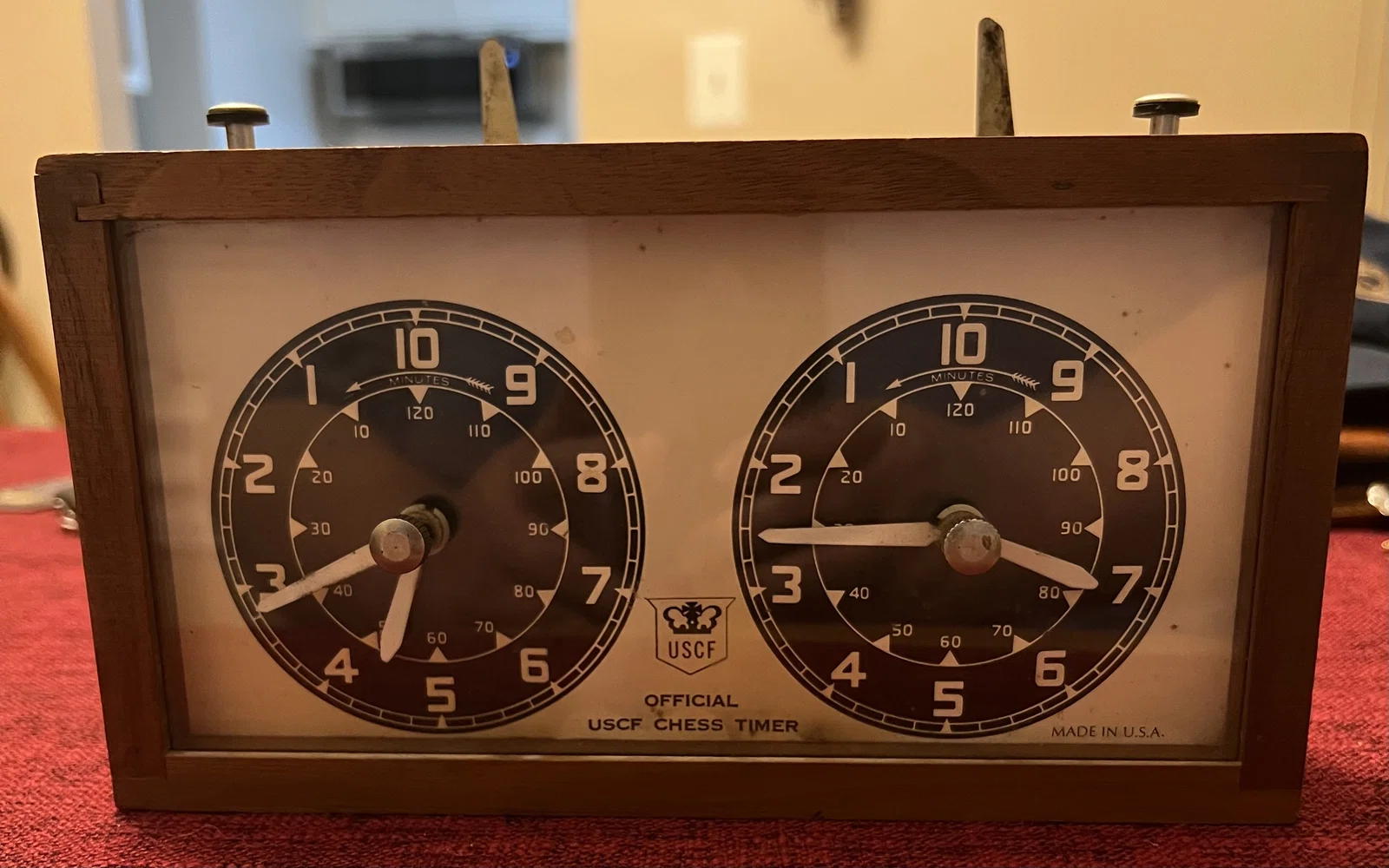

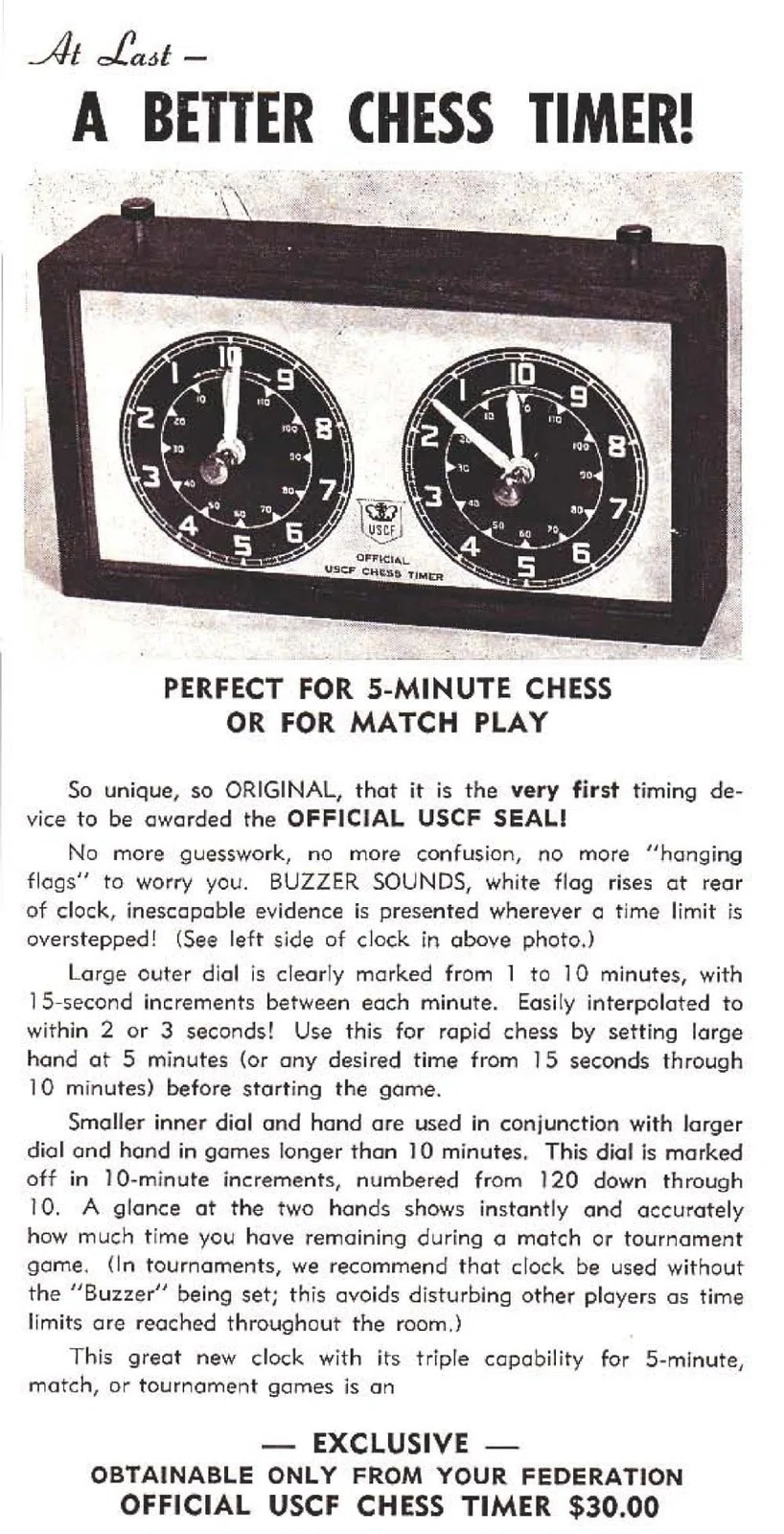

As late as 1968, the Official USCF Chess Timer used rear arms and a buzzer to announce expiration. Advertising promoted the design as eliminating guesswork and hanging flags. The mechanism was ambitious but more complex and fragile than the simple falling indicator.

Visual record

The USCF Buzzer Clock – An Overengineered Answer to the Flag

The USCF Buzzer Clock – An Overengineered Answer to the FlagFrom the Collection of Daniel Jones
The USCF Buzzer Clock – An Overengineered Answer to the FlagFrom the Collection of Daniel Jones
The USCF Buzzer Clock – An Overengineered Answer to the Flag

Why the Flag Won

The flag was cheap, visible, self-contained, and easy to understand. It solved a dispute problem with very little additional machinery. That combination made it one of the most successful small inventions in competitive chess.
