Electric Is Not Digital
The first electrical chess clocks still used analog dials. Electricity might power an indicator, regulate a movement, or trigger a signal while the familiar hands remained. A 1938 Milwaukee advertisement, for example, promoted a battery-operated electric indicator.
Electric Before Digital
All-Electric Tournament Use

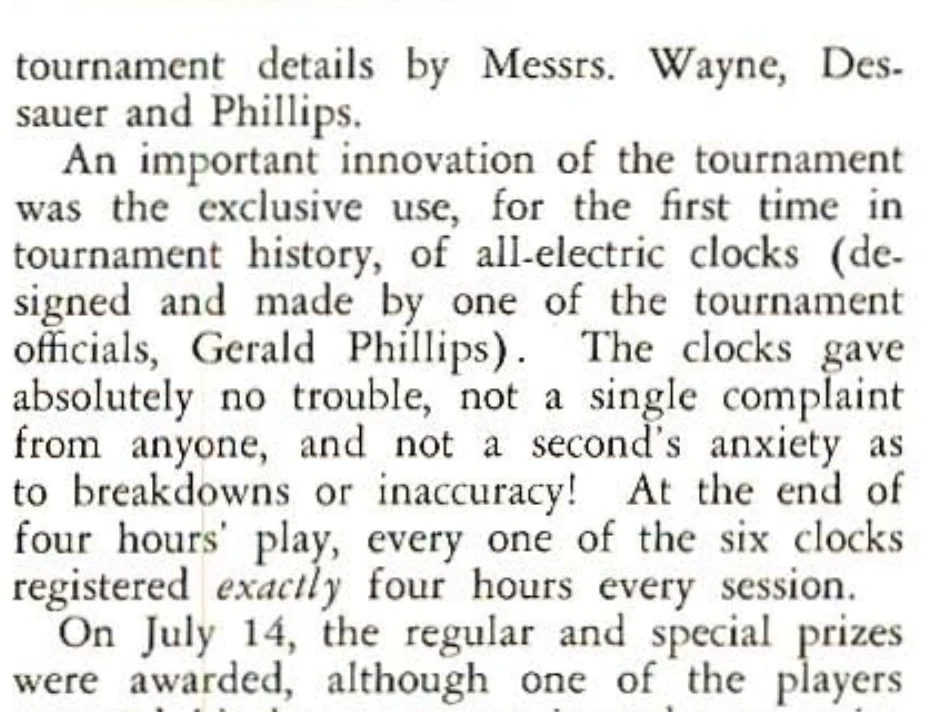

In 1940, Ventnor used six all-electric clocks made by tournament official Gerald Phillips. The safest historical claim is not that these were the first electric clocks ever, but that contemporary reporting presented the event as an early exclusive tournament-wide use.
1940 — “All-Electric” Tournament Chess

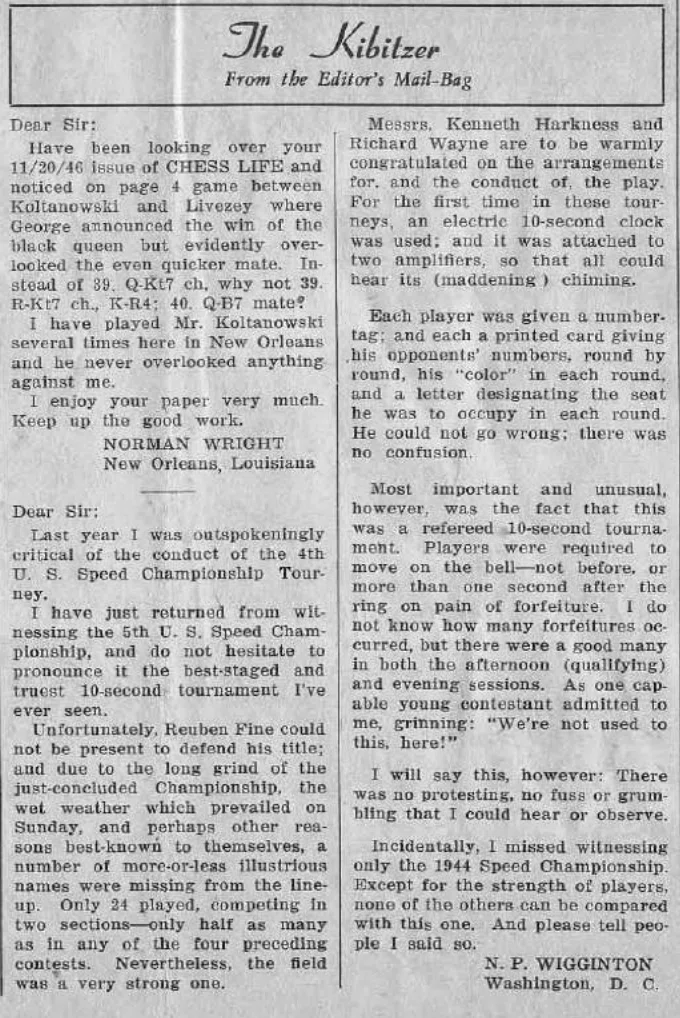

Postwar Experimentation

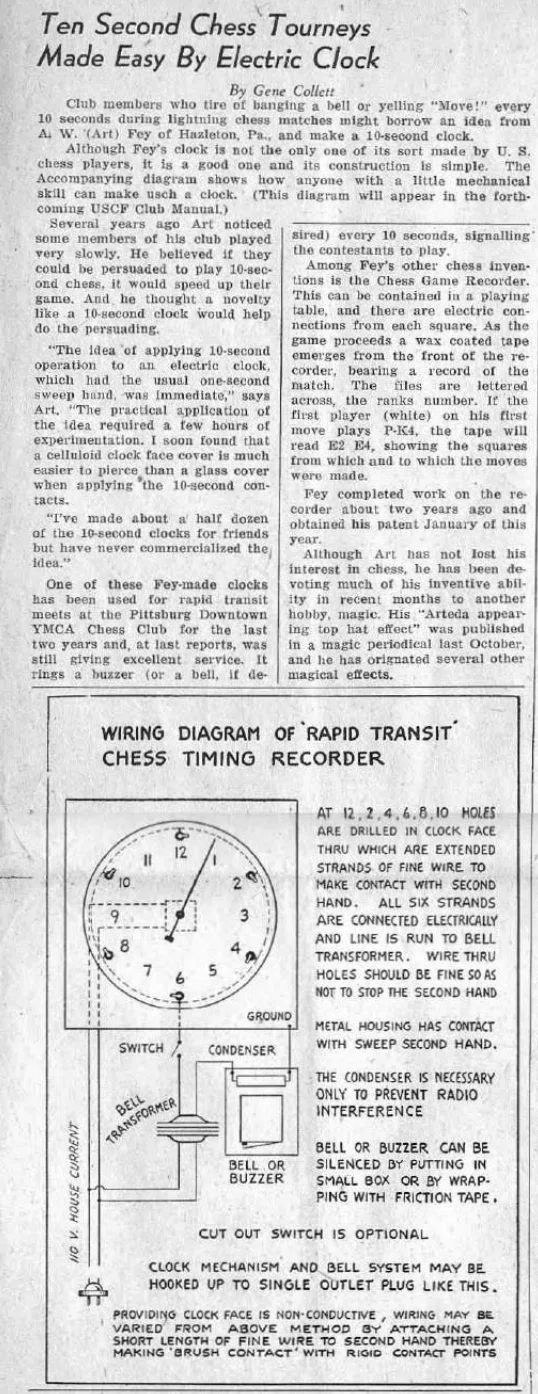

During the late 1940s, electric clocks were used to signal, regulate, and automate timing. Rapid-transit clocks fit naturally into this phase because electricity could ring or buzz at exact intervals.
1946–1948 — Postwar Electric Experimentation
The 1970s: Digital Logic Appears

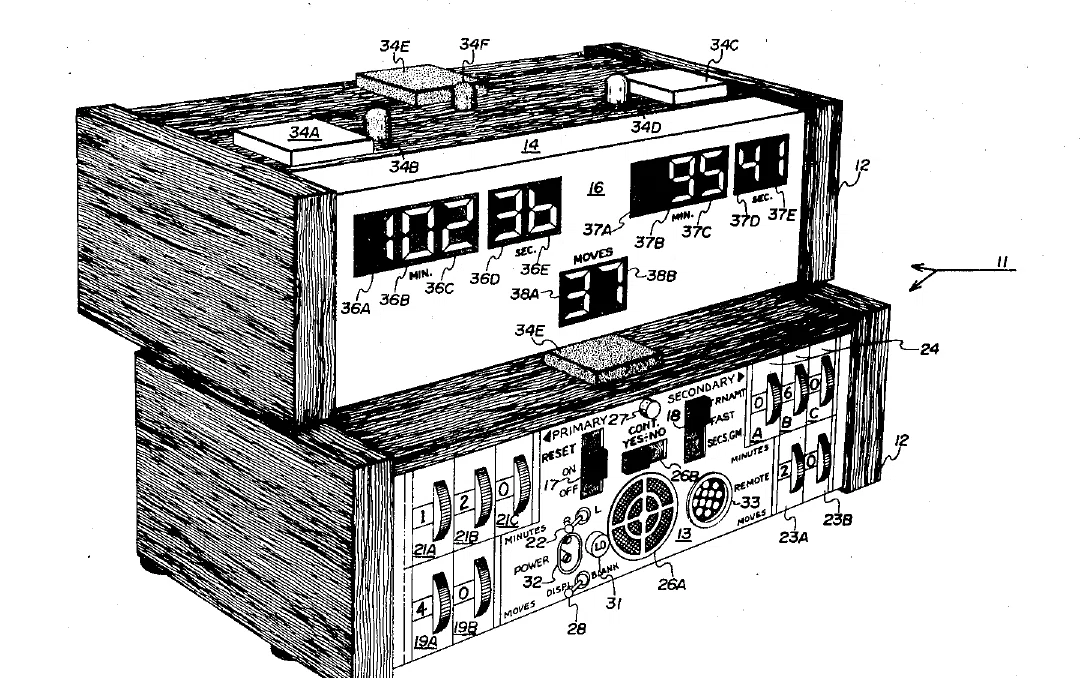

The conceptual break came when clocks began using electronic counting, numerical displays, and logic-based control. Bruce Cheney's 1973 Cornell project is commonly identified as an early digital-display prototype. Patent filings in the mid-1970s described programmable periods, digital display, move handling, and logic circuitry. Soviet electronics literature was experimenting at the same time.
The 1970s — From Electric to Digital
From Prototype to Product
By 1981 the Kaisha 1000 was advertised as a retail electronic chess clock. In the Netherlands, Ben Bulsink built roughly 60 handmade digital clocks in the mid-1980s. Digital clocks were now real commercial objects, but still too expensive or specialized to displace mechanical clocks universally.
Fischer Timing
Bobby Fischer's 1988 patent application and 1989 patent grant introduced the timing method now associated with increment or compensation. Fischer did not invent the digital chess clock; he introduced a new way to allocate time that digital hardware could implement conveniently.
1988–1994 — Digital Timing Comes of Age
DGT and Tournament Standardization
The early 1990s marked the decisive institutional step. FIDE awarded DGT a three-year contract in 1993, and the DGT FIDE clock was introduced internationally in 1994. Digital timing now had an accepted tournament platform.
A Late Soviet Alternative

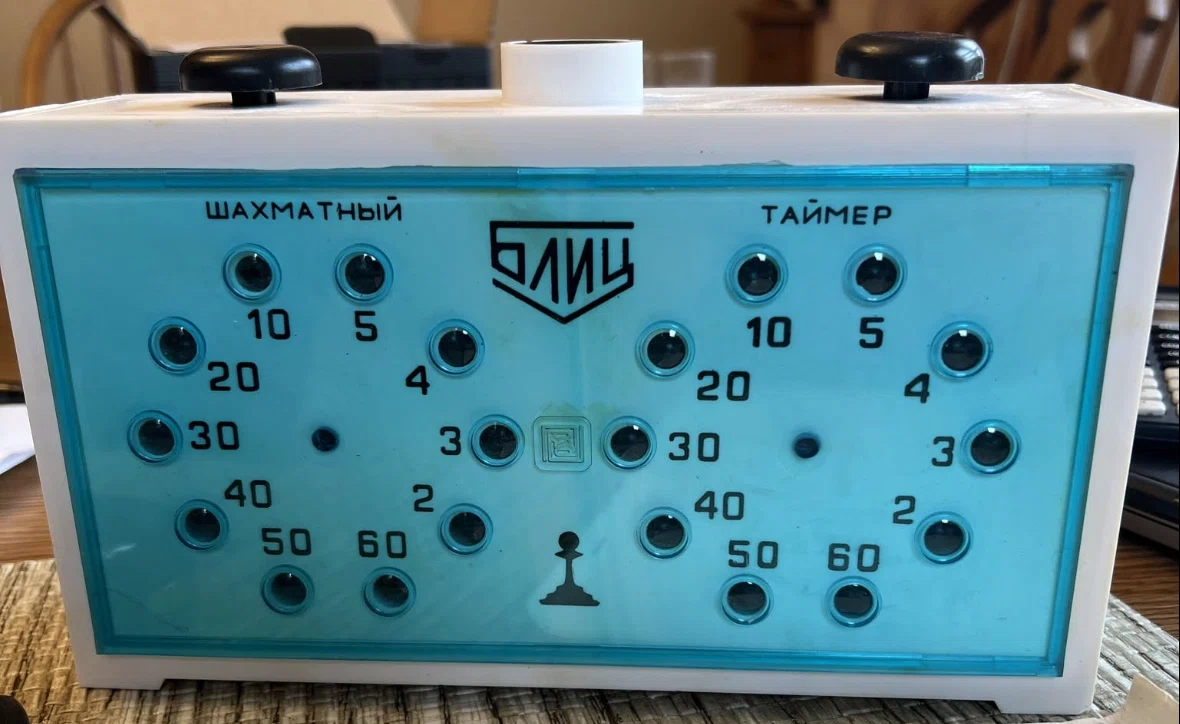

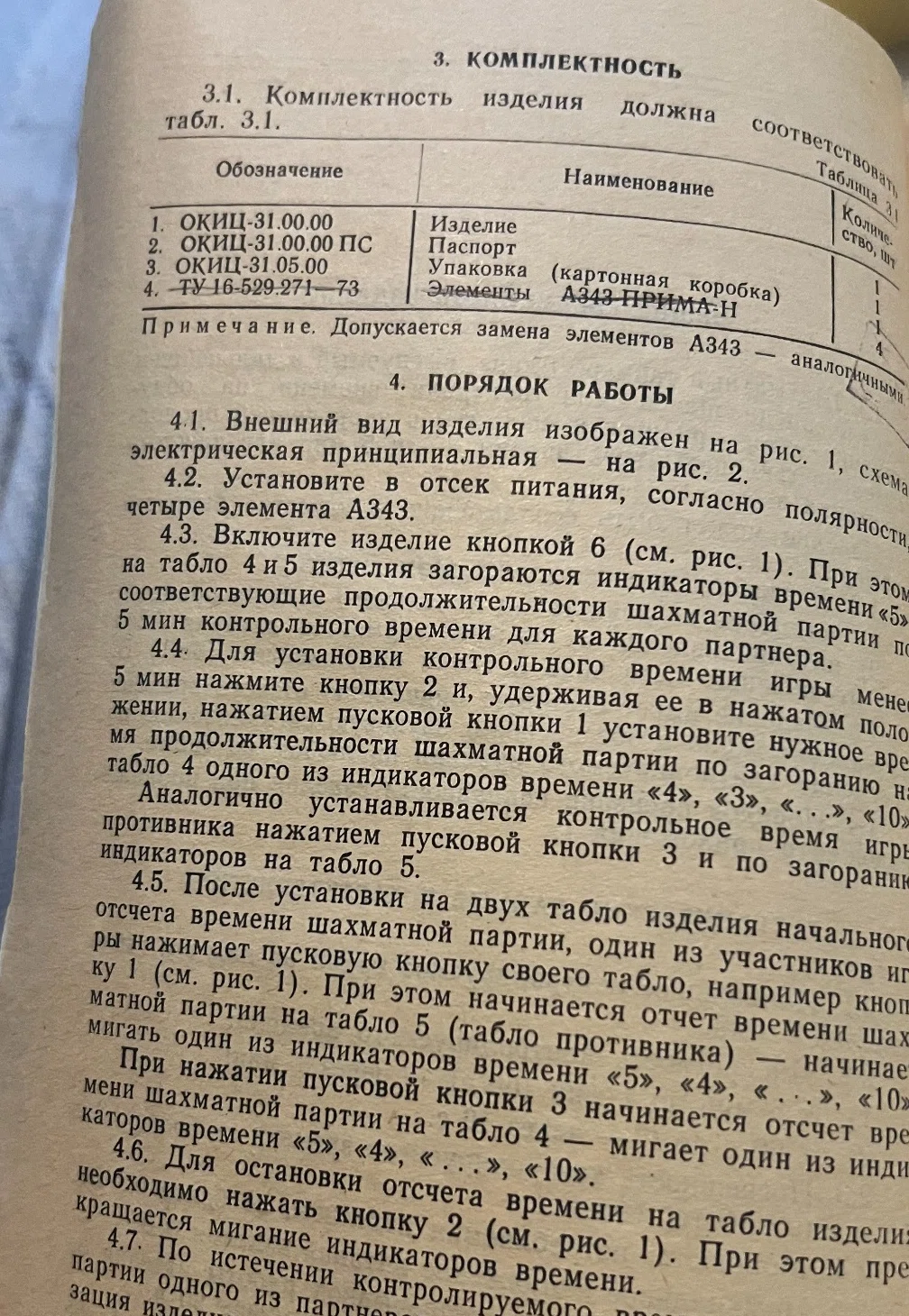

Around 1991, a Soviet 'Blitz' electronic timer used discrete illuminated positions rather than a full numerical display. It tracked five minutes down through minutes and then seconds, demonstrating that electronic timing could bypass hands without adopting the familiar digital-digit interface.
c. 1991 — Soviet “Blitz” Electronic Chess Clock
Mass-Market Manufacture

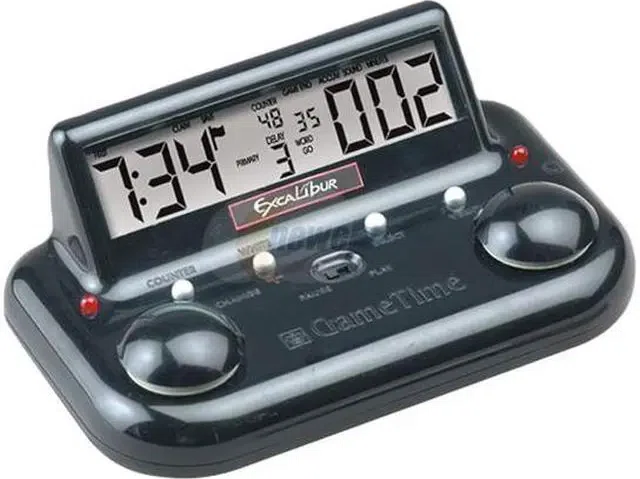

By the mid-1990s and early 2000s, Chinese manufacture helped turn the digital chess clock into inexpensive global hardware. Excalibur GameTime products and Shenzhen-based timing manufacturers belong to this commoditization phase.
1990s–2000s — China and the Mass-Market Clock
Historical Significance
The digital revolution was not one invention. It was a chain: electrical assistance, electronic counting, numerical display, programmable logic, new time controls, federation acceptance, and finally low-cost mass production.
