The Fundamental Question
After a player moves, some physical action must stop that player's timer and start the opponent's. Every mechanical chess clock solves this transfer problem, but the visible control can take remarkably different forms.
Controlling the Chess Clock
The Rocker Family

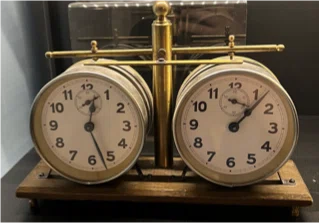

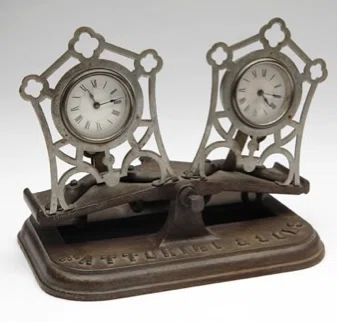

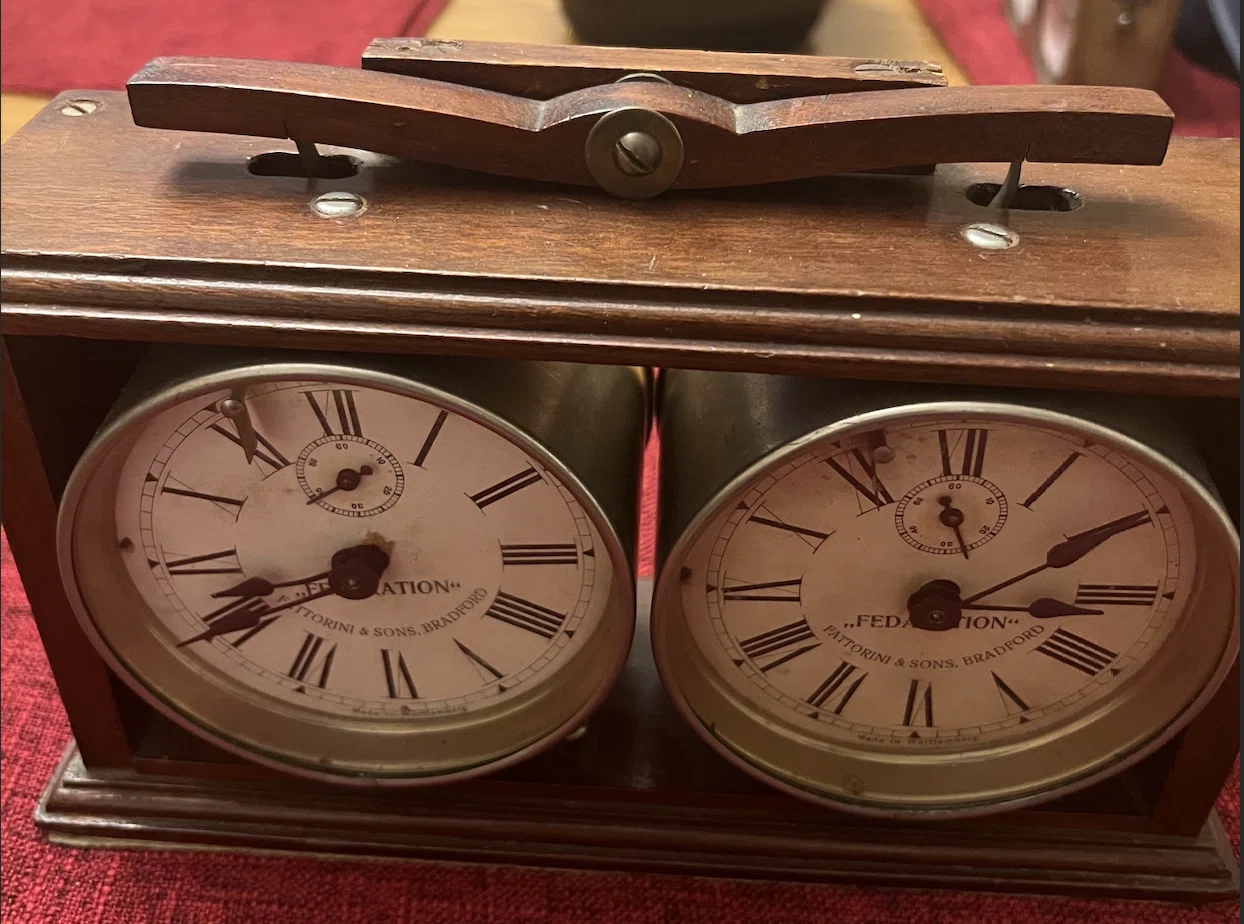

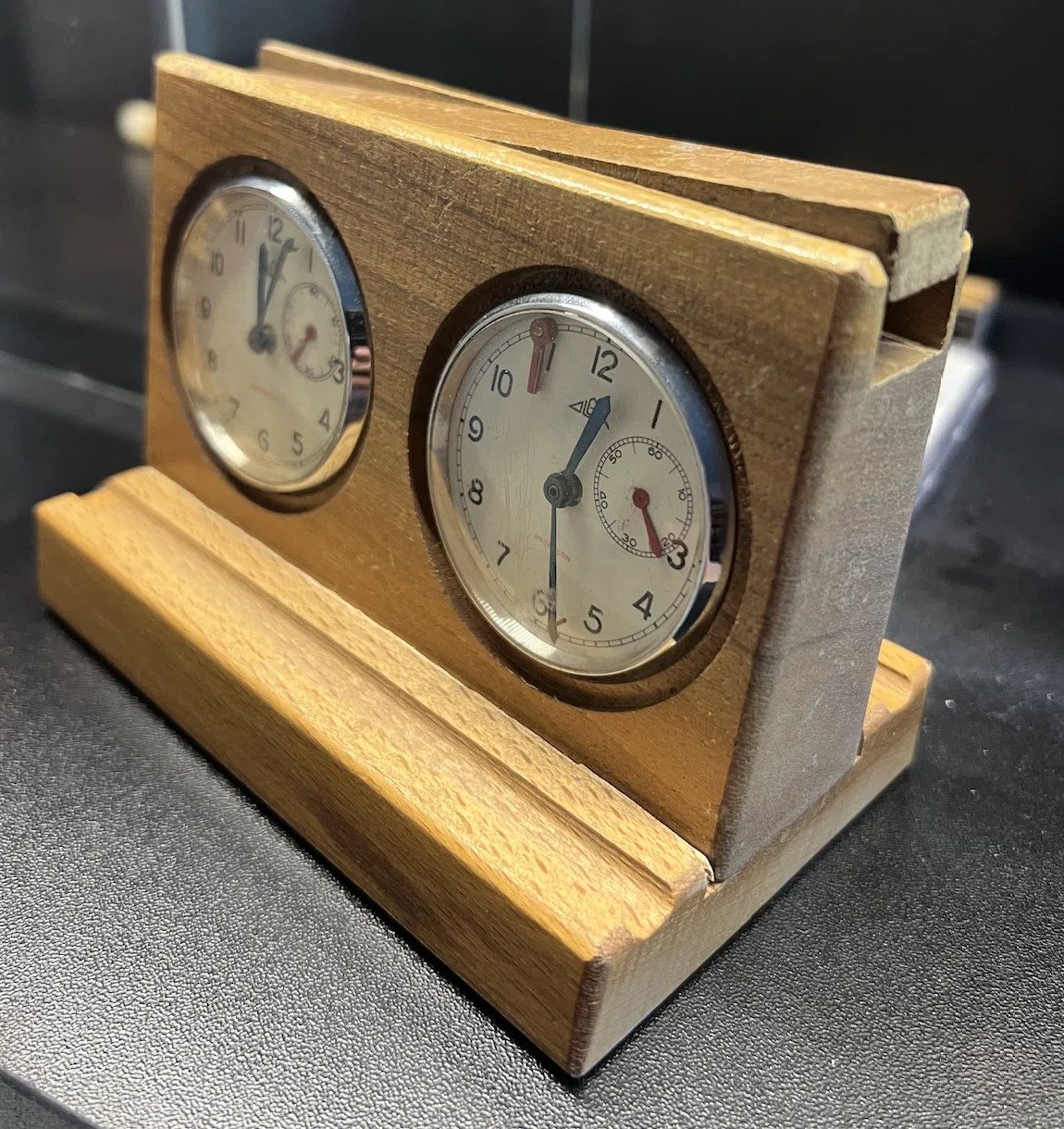

The earliest secure family used a rocking or tumbling action. Fattorini exposed the alternating motion dramatically; Thomas Haller elevated it into an overhead teeter-totter; later designs could conceal the same principle inside a case.
Start with the Tumbler / Rocker
Push Buttons

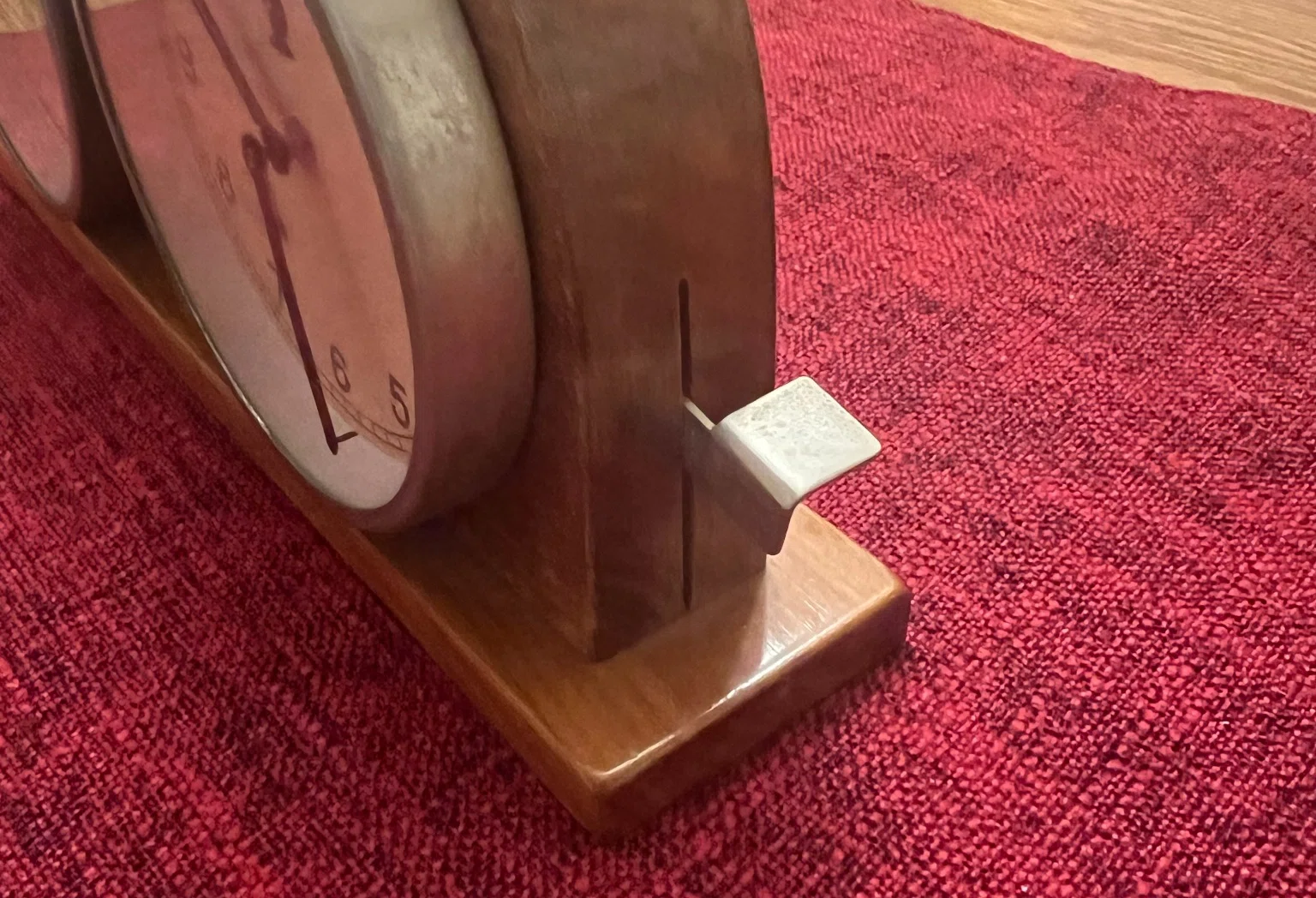

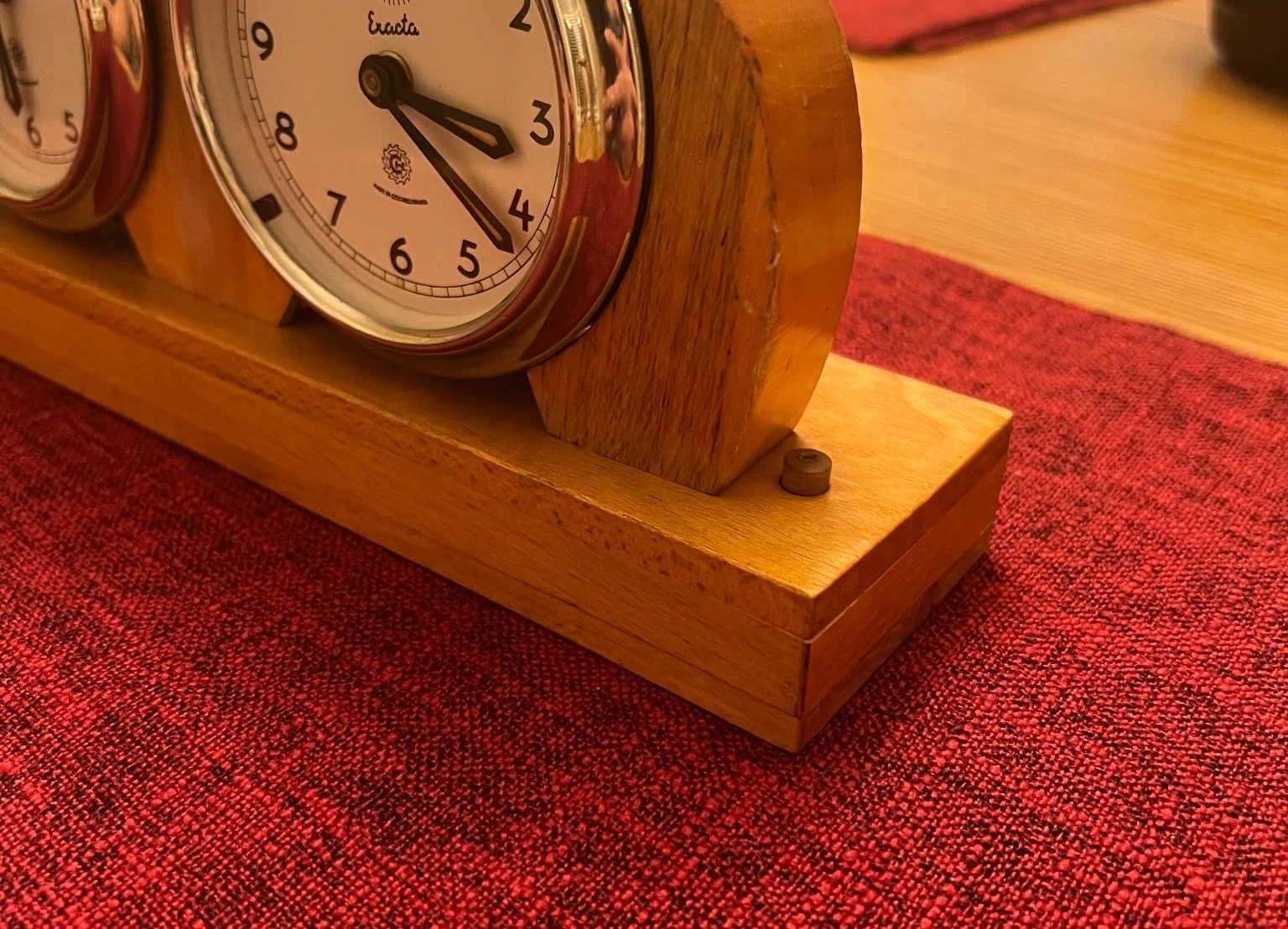

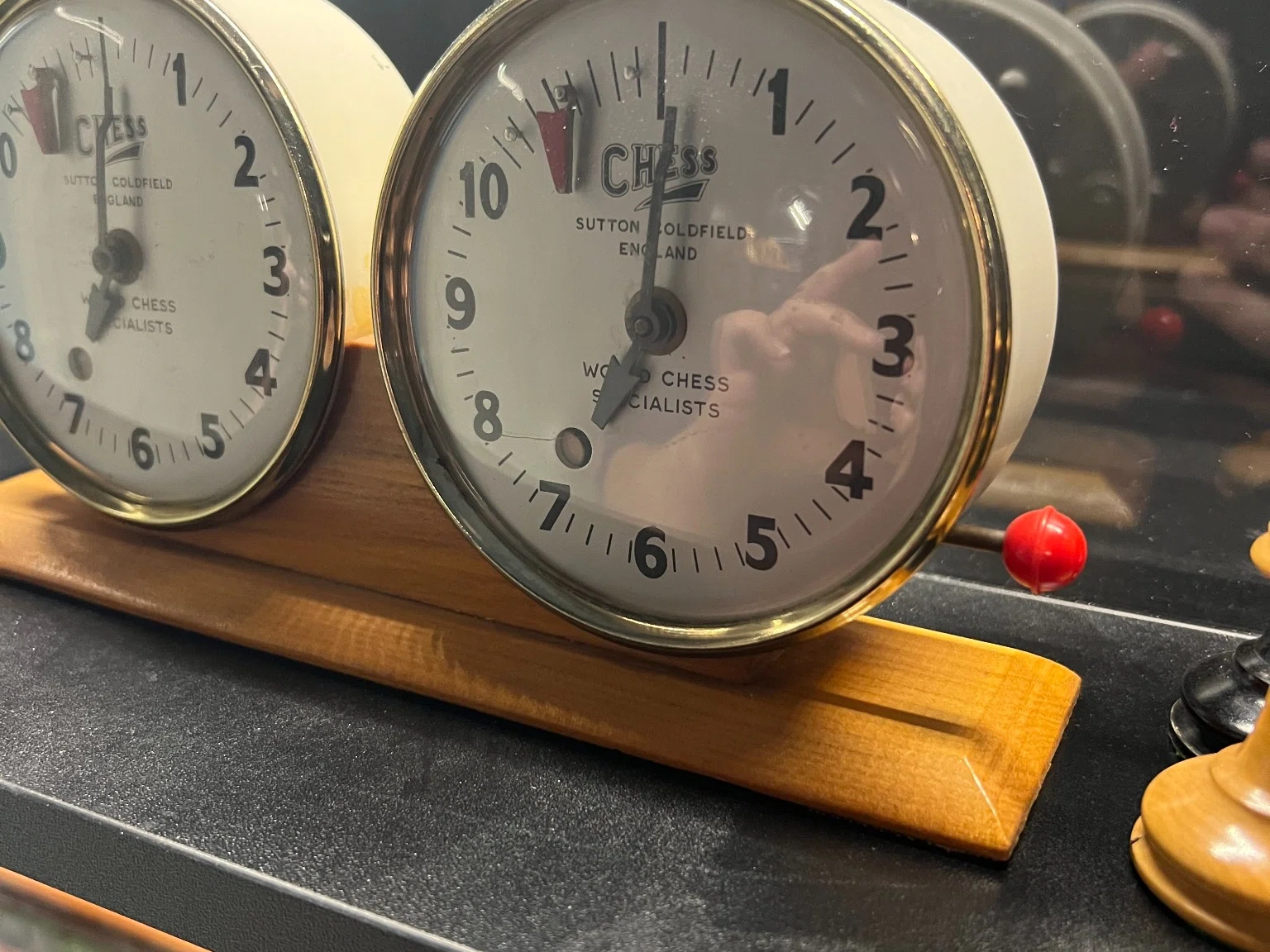

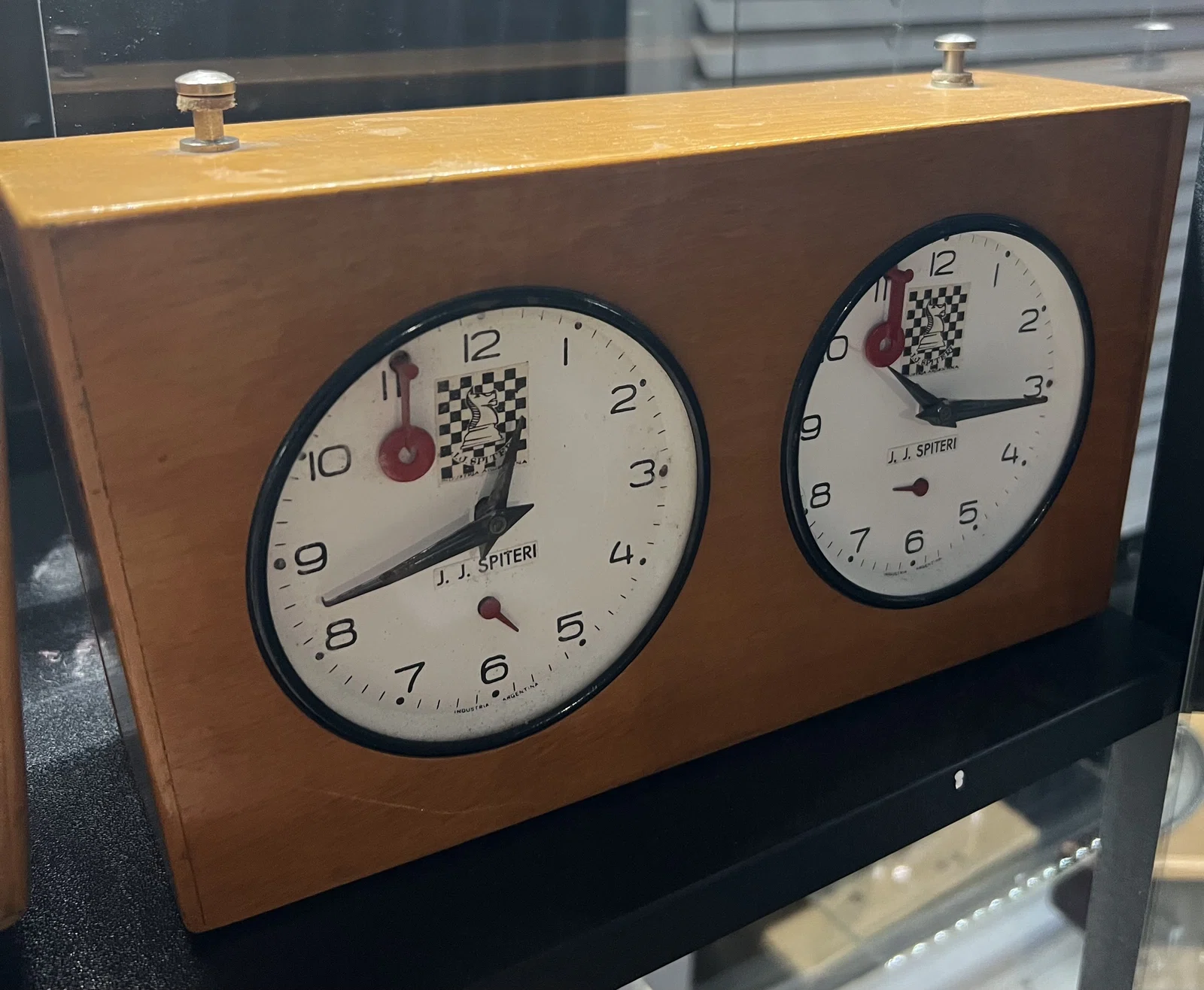

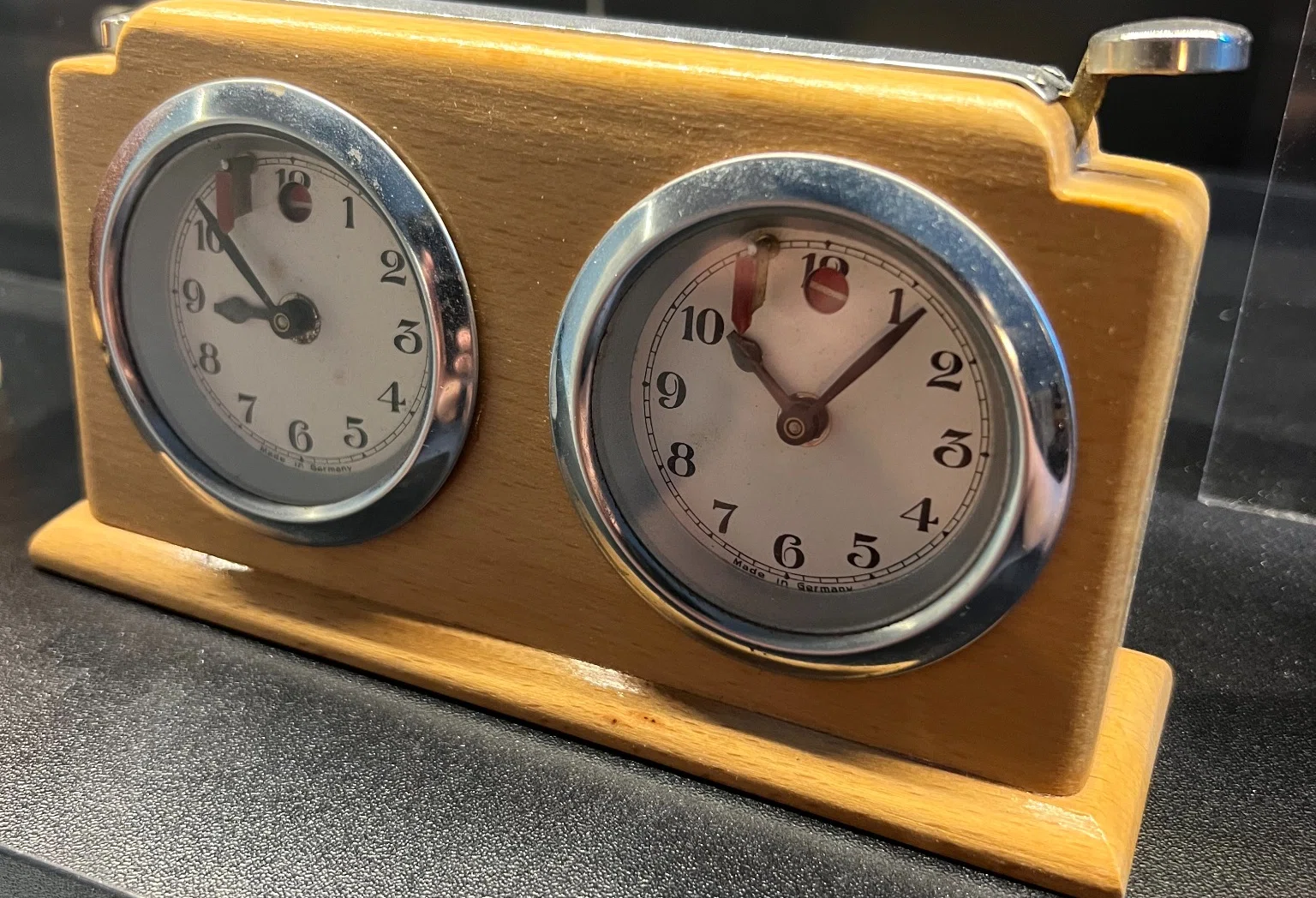

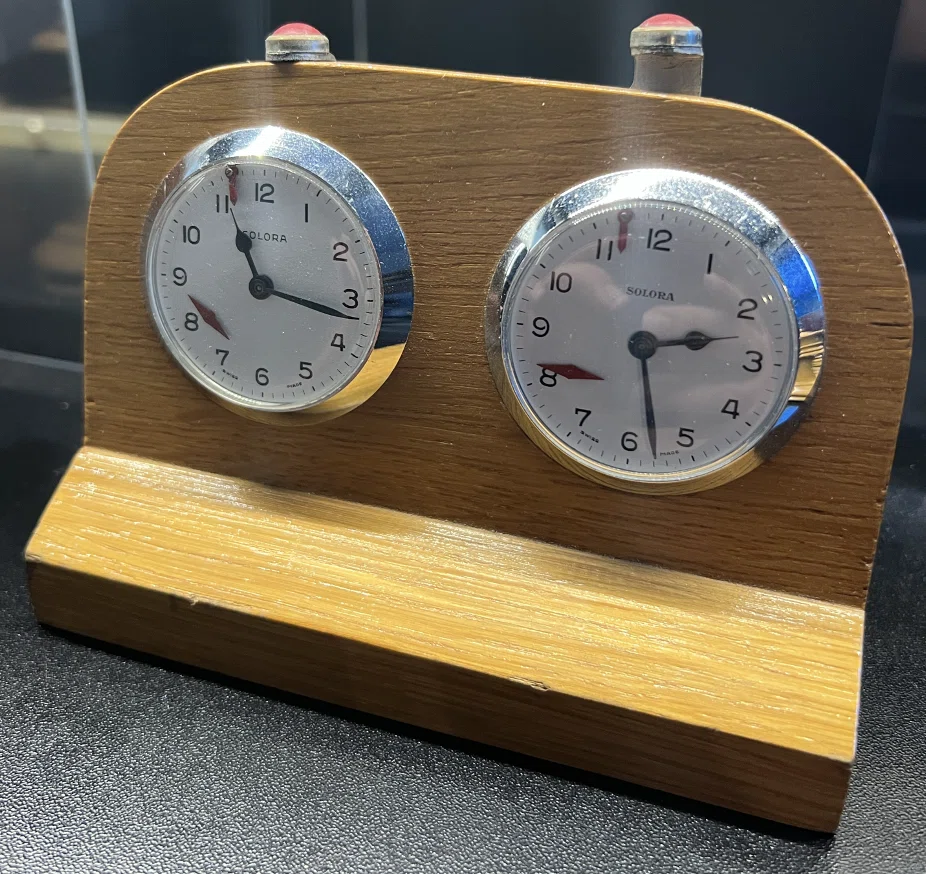

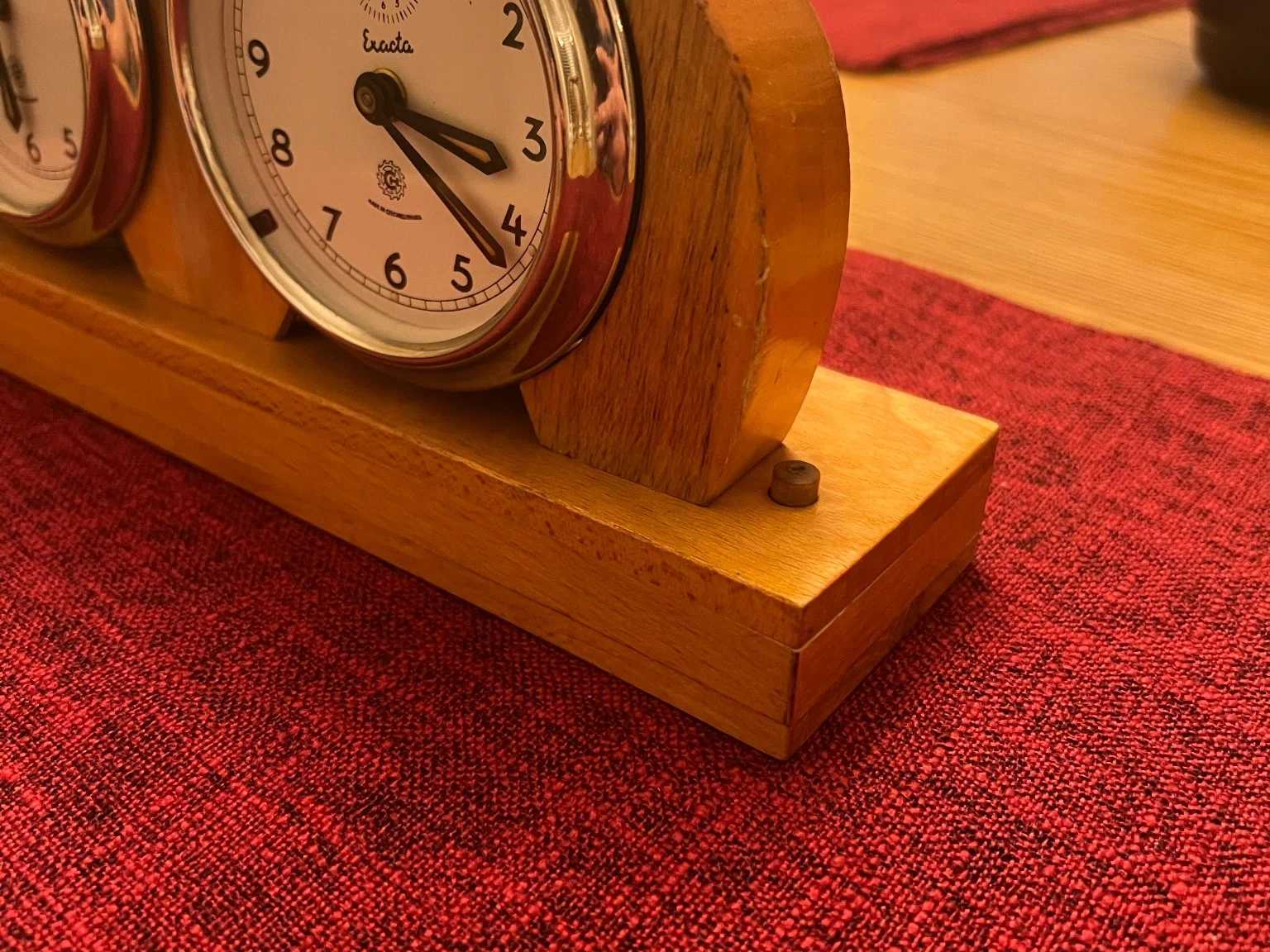

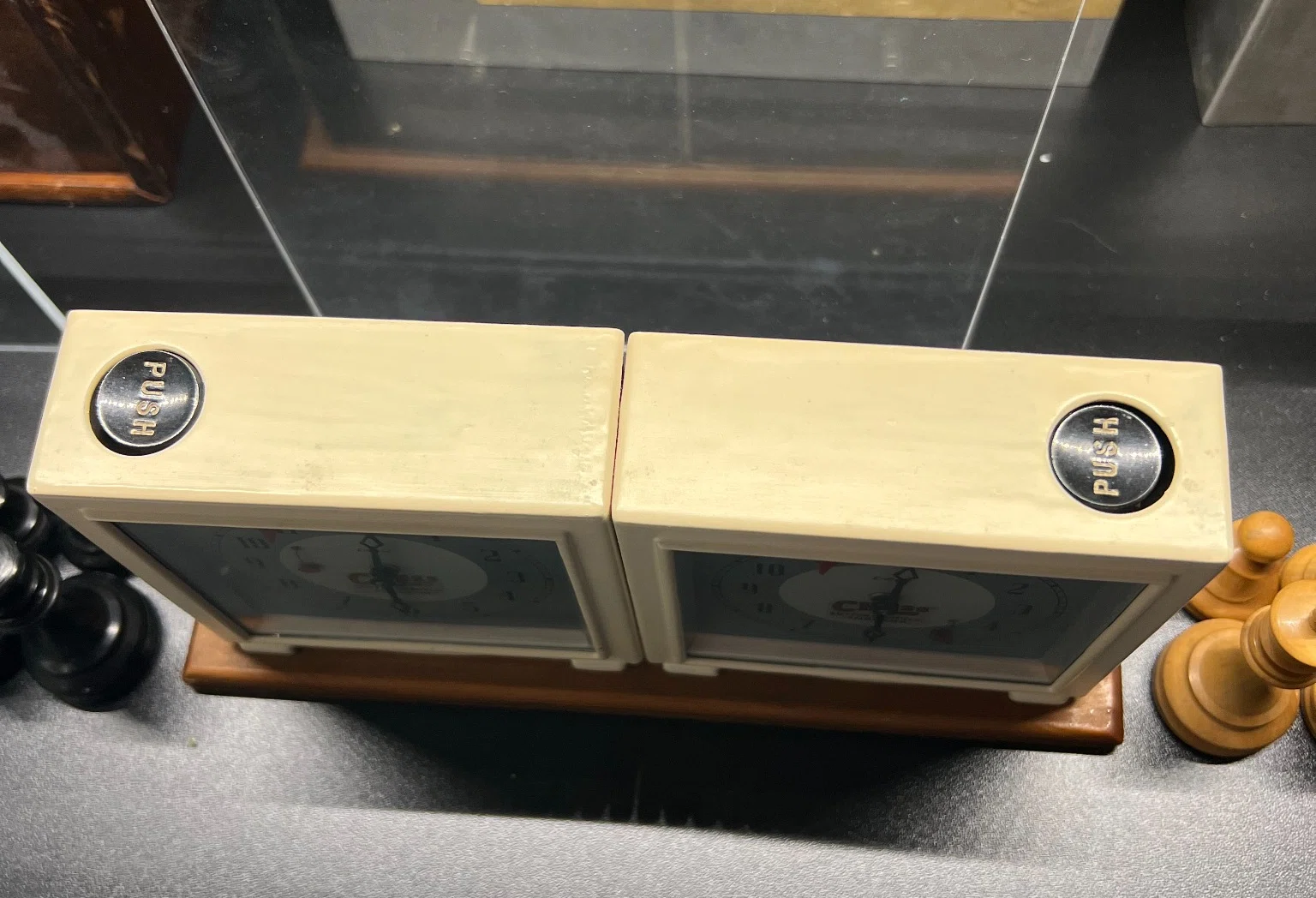

Top-mounted buttons became the most familiar interface, but buttons also appeared on sides and lower case edges. Their location is an ergonomic choice, not a simple chronological marker.
The Familiar Solution: Buttons
What the Button Does Underneath

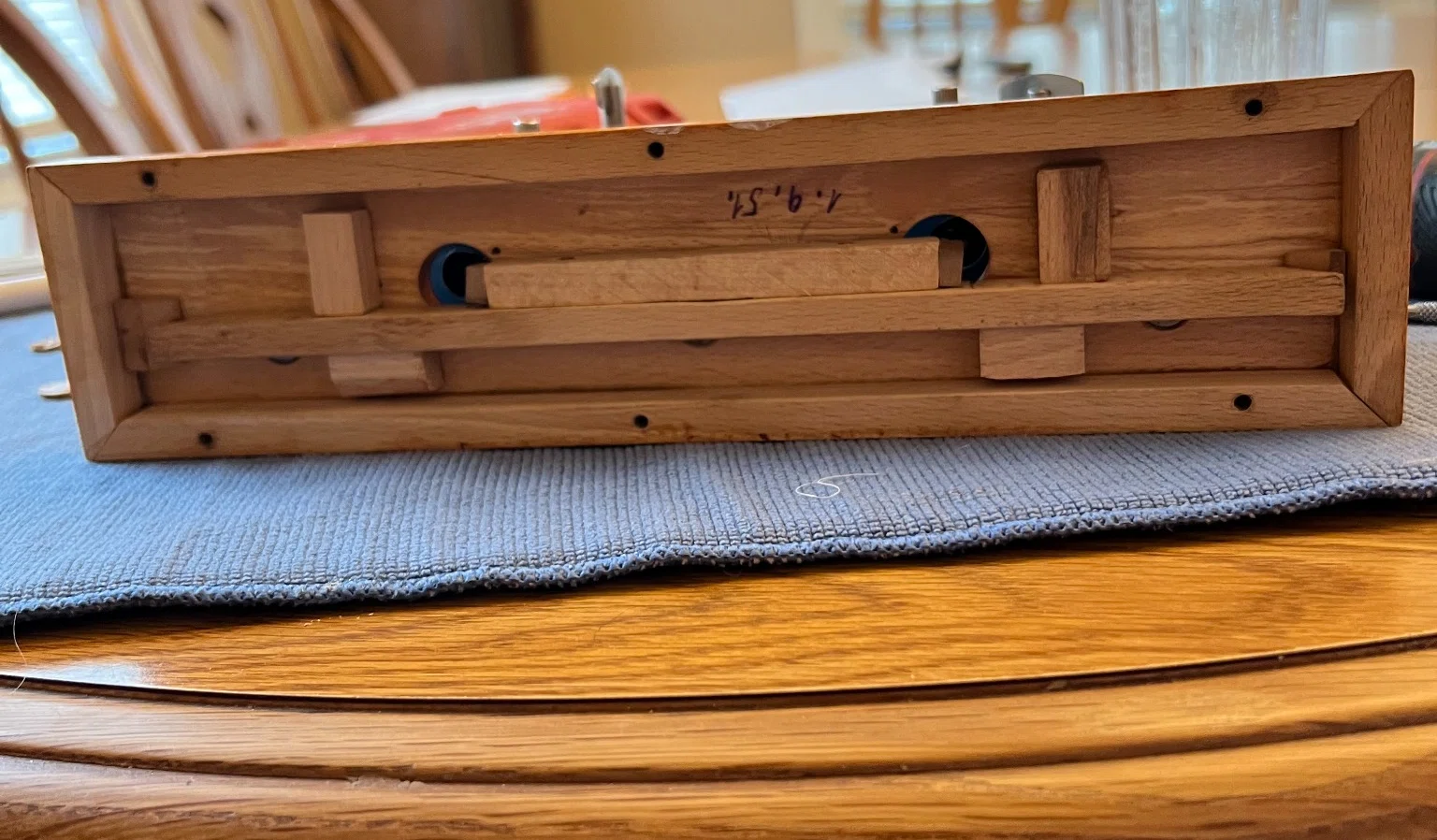

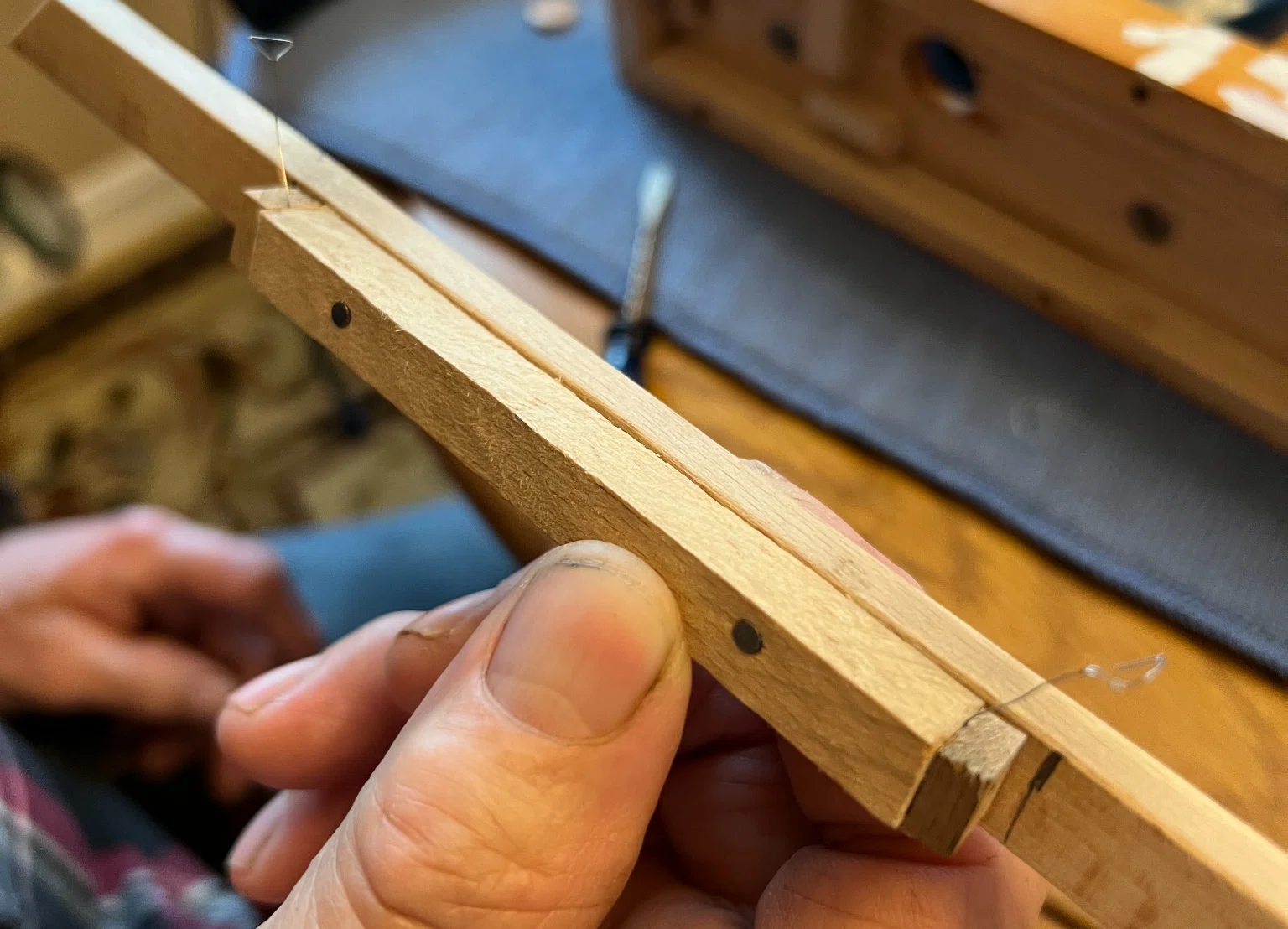

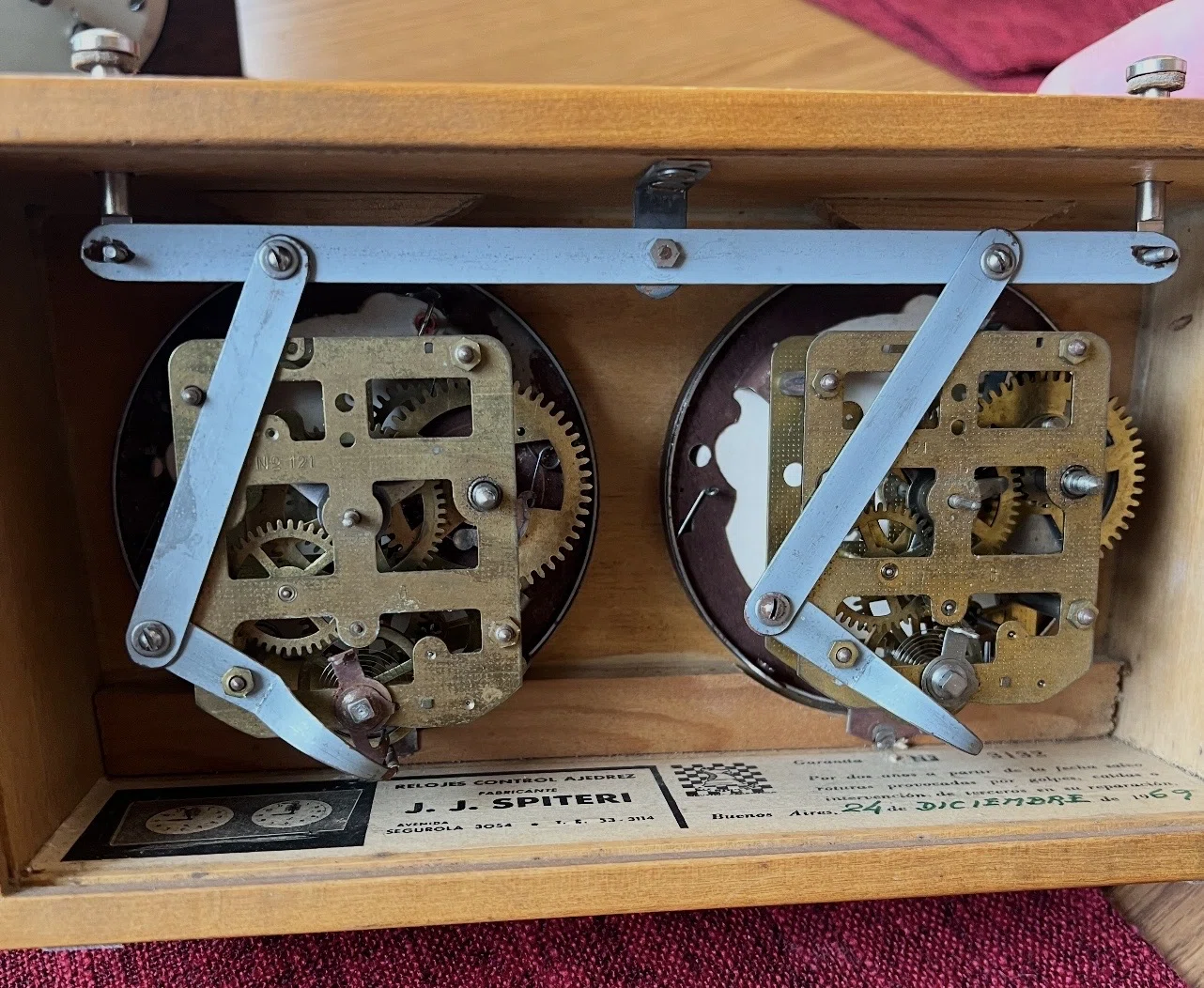

The visible plunger usually moves a linkage that engages or releases the stop-work of the opposite movement. Externally different designs can therefore be mechanically close.
What The Button Really Does
Sliding Controls

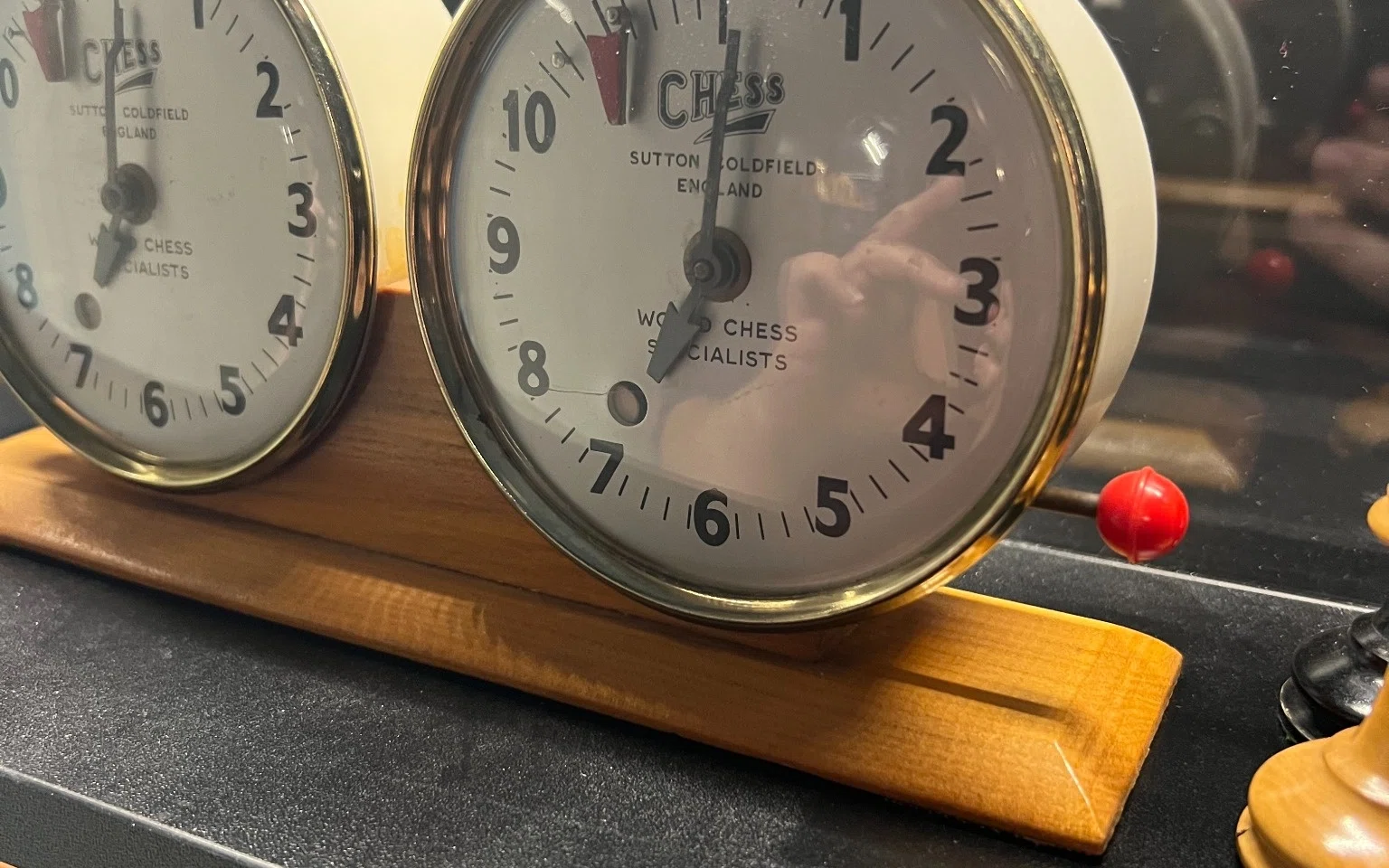

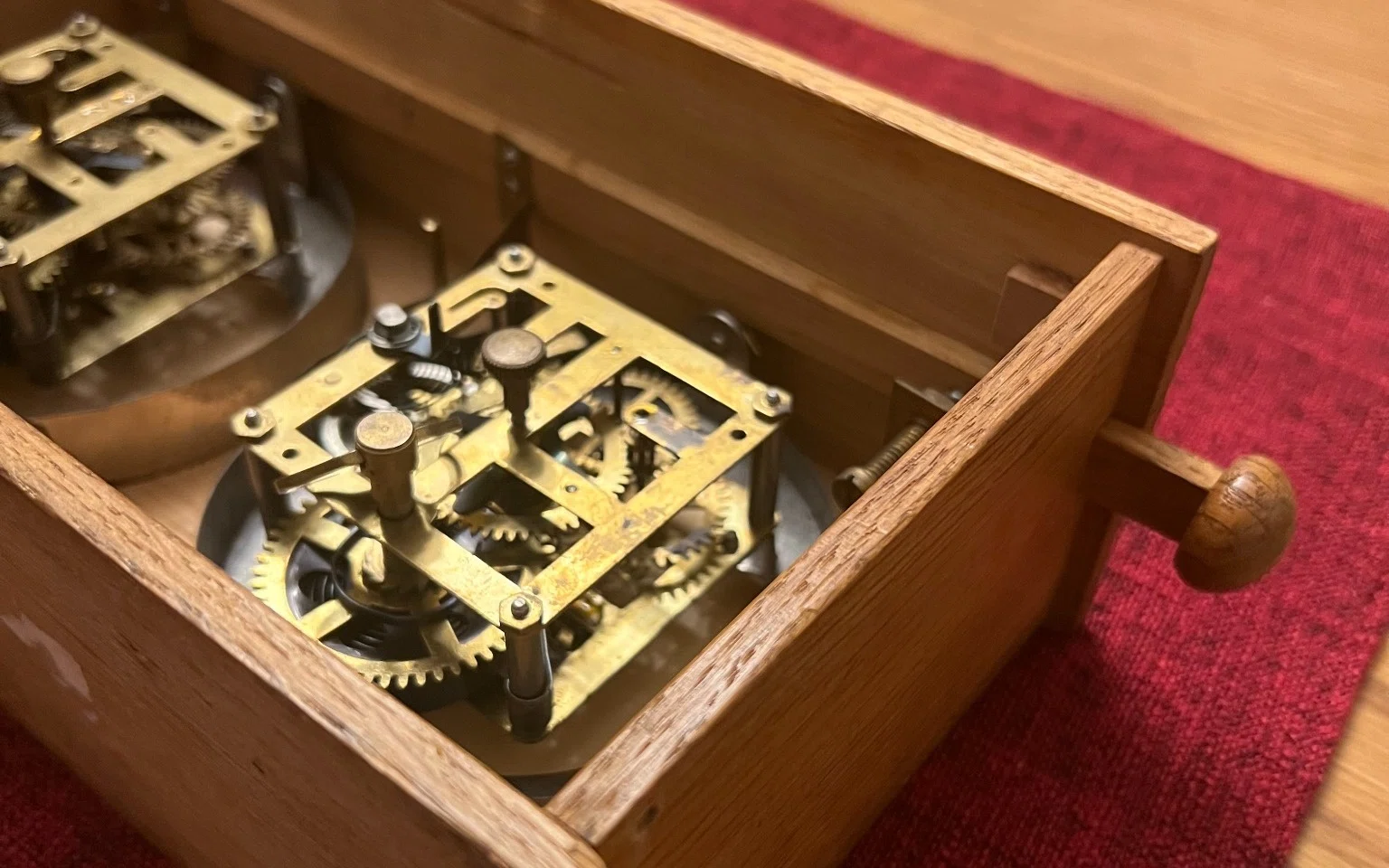

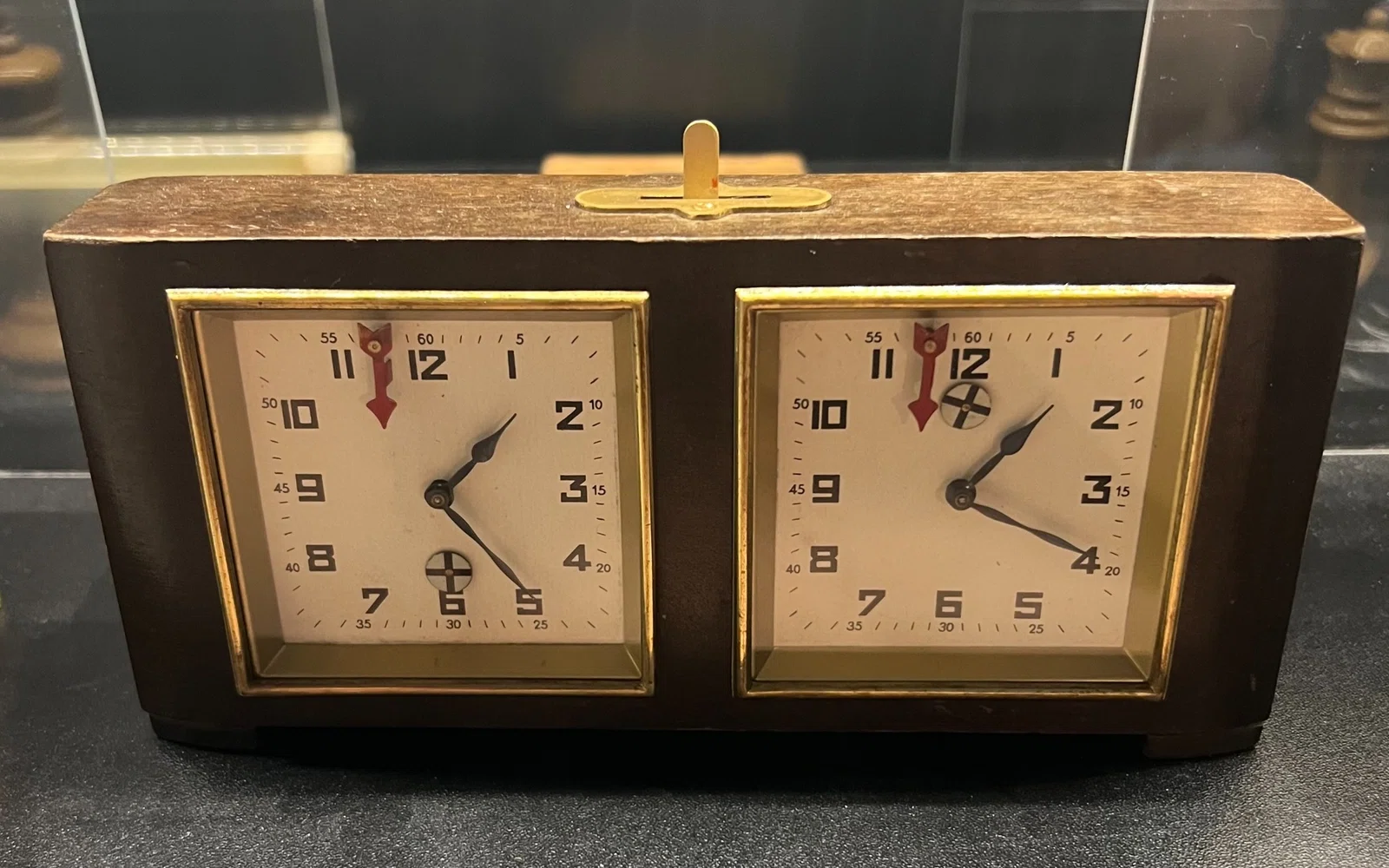

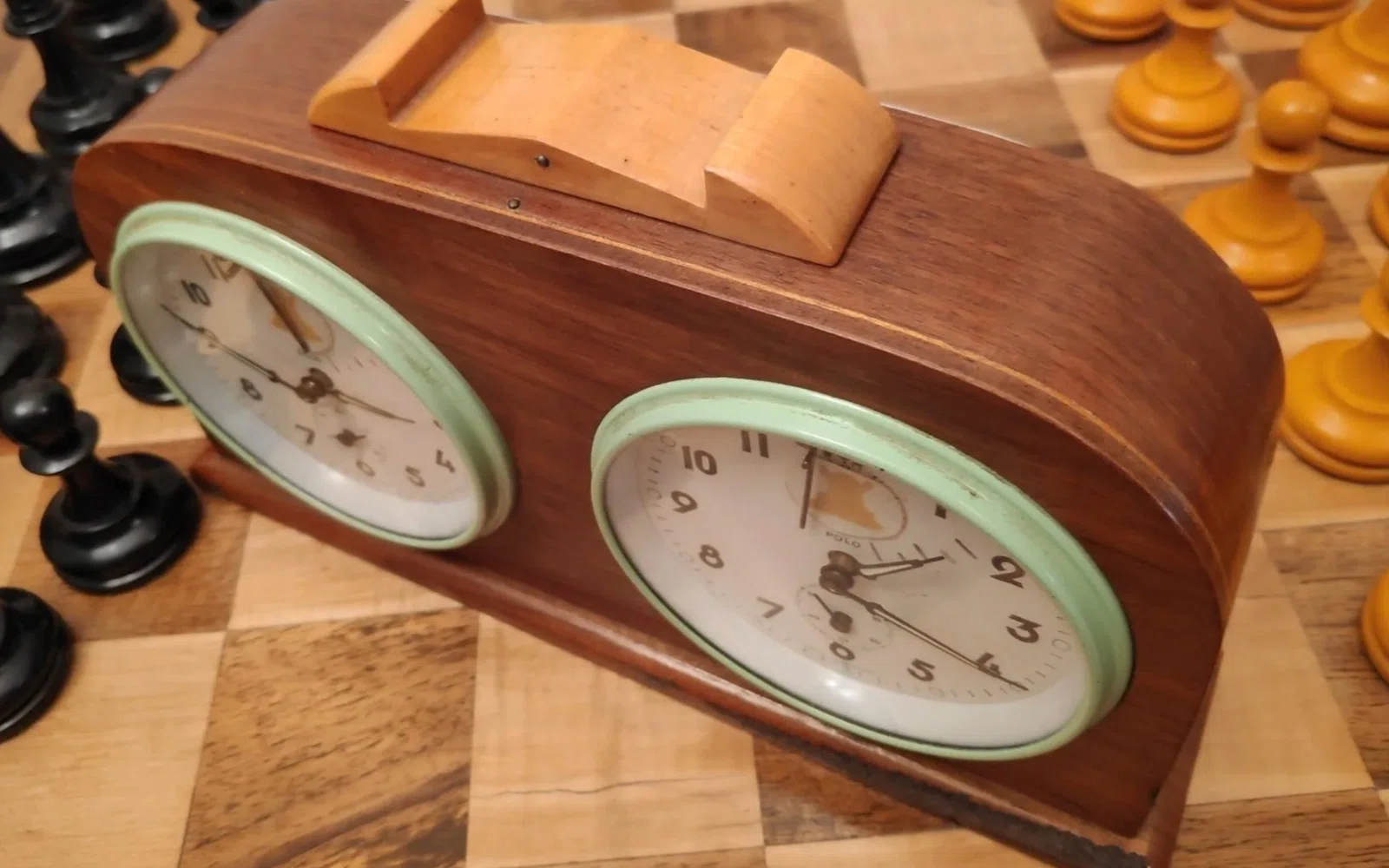

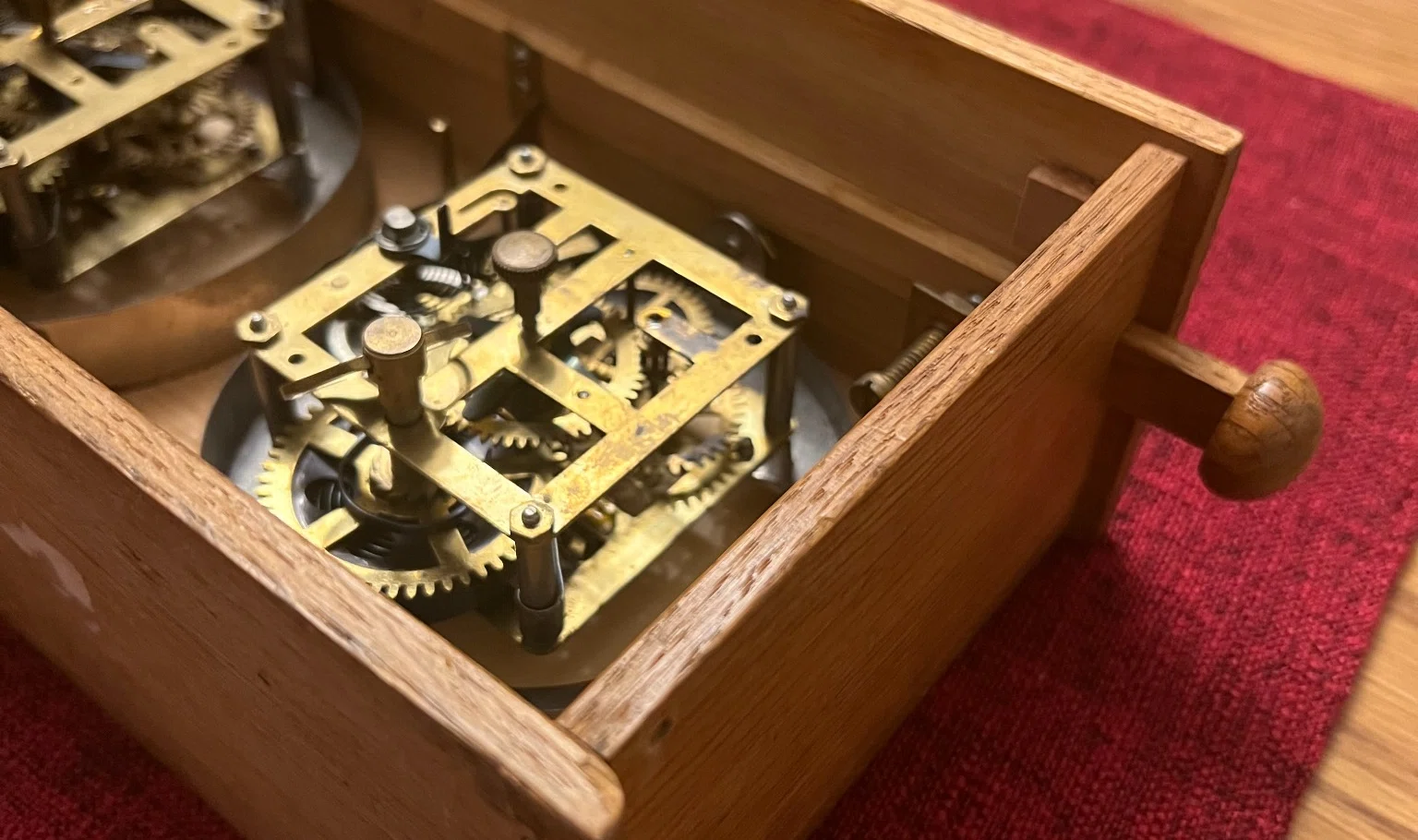

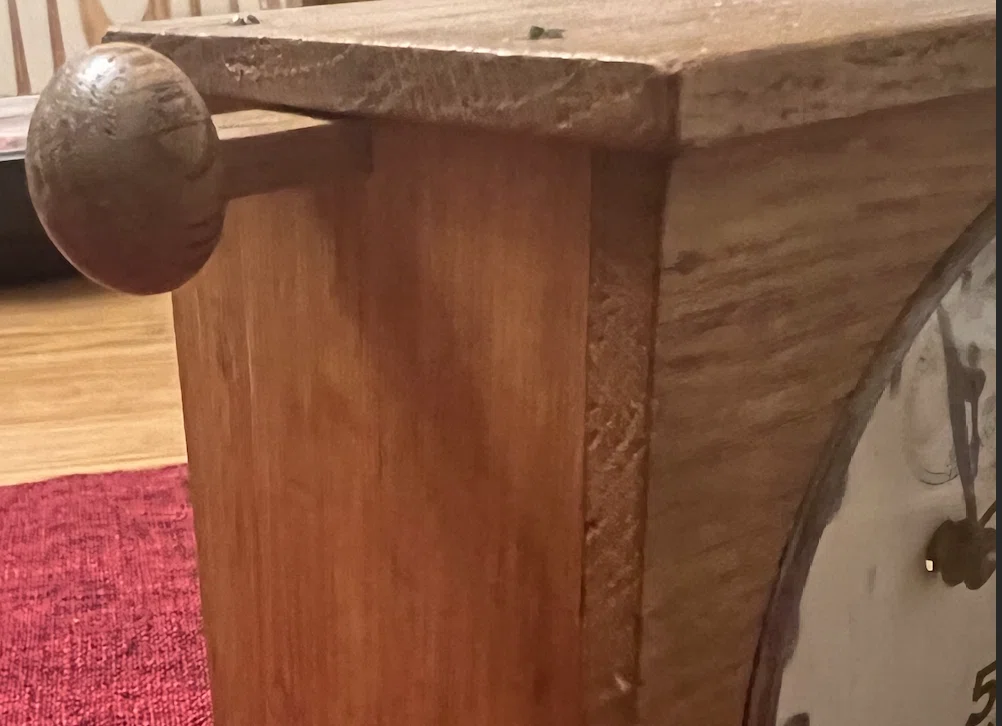

Some clocks transfer time laterally. Swedish shuttle and full-width bar systems slide across the case rather than move vertically. The gesture changes; the objective does not.
The Walbo Outlier

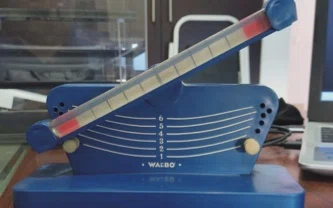

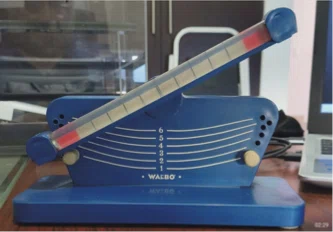

Walbo is different in kind. Instead of merely switching between two conventional movements, operating the device changes the orientation of the timing tube itself, making gravity part of the time-measuring principle.
Lateral Switching and the Walbo Outlier
Switching Versus Stopping

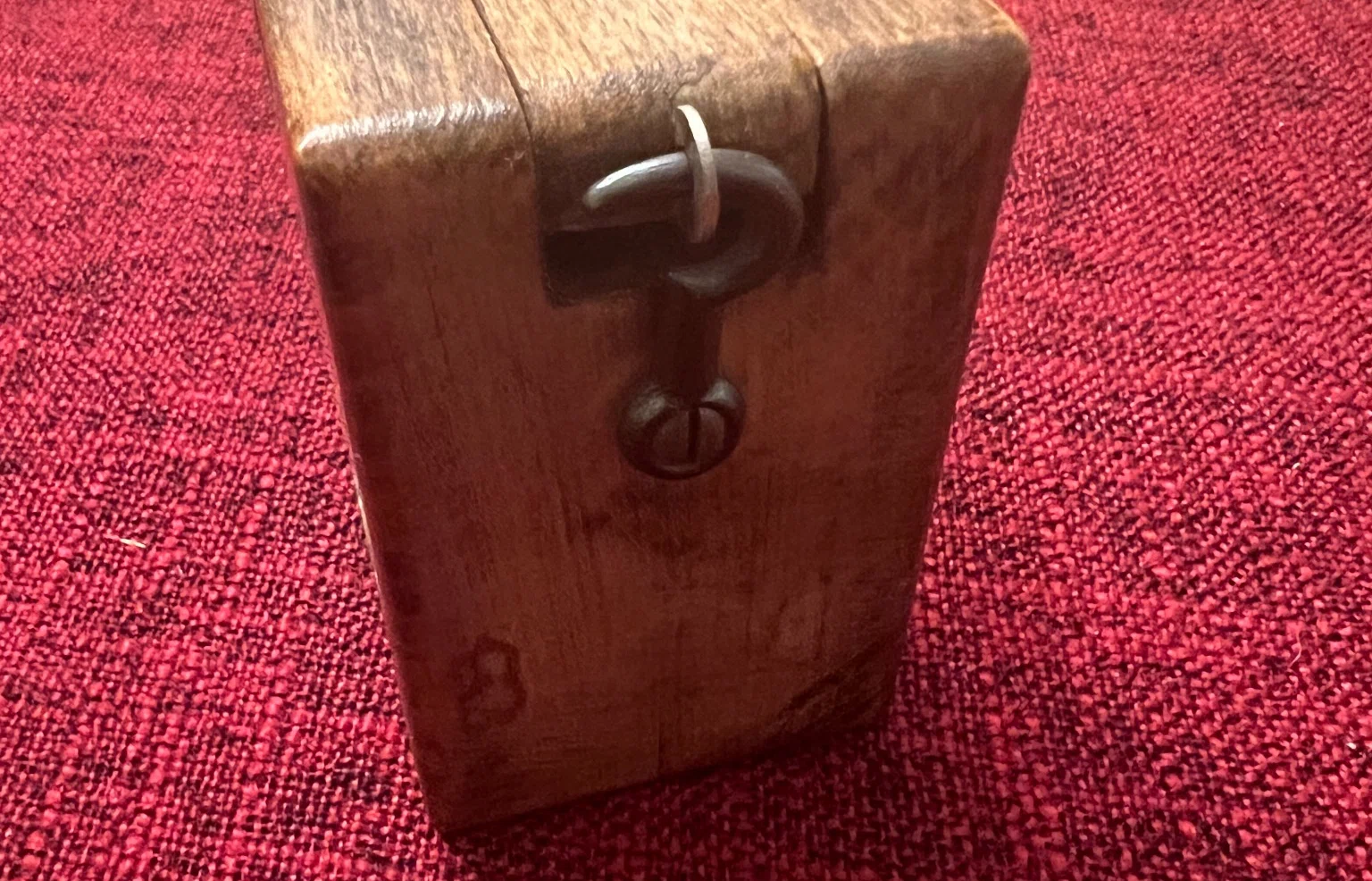

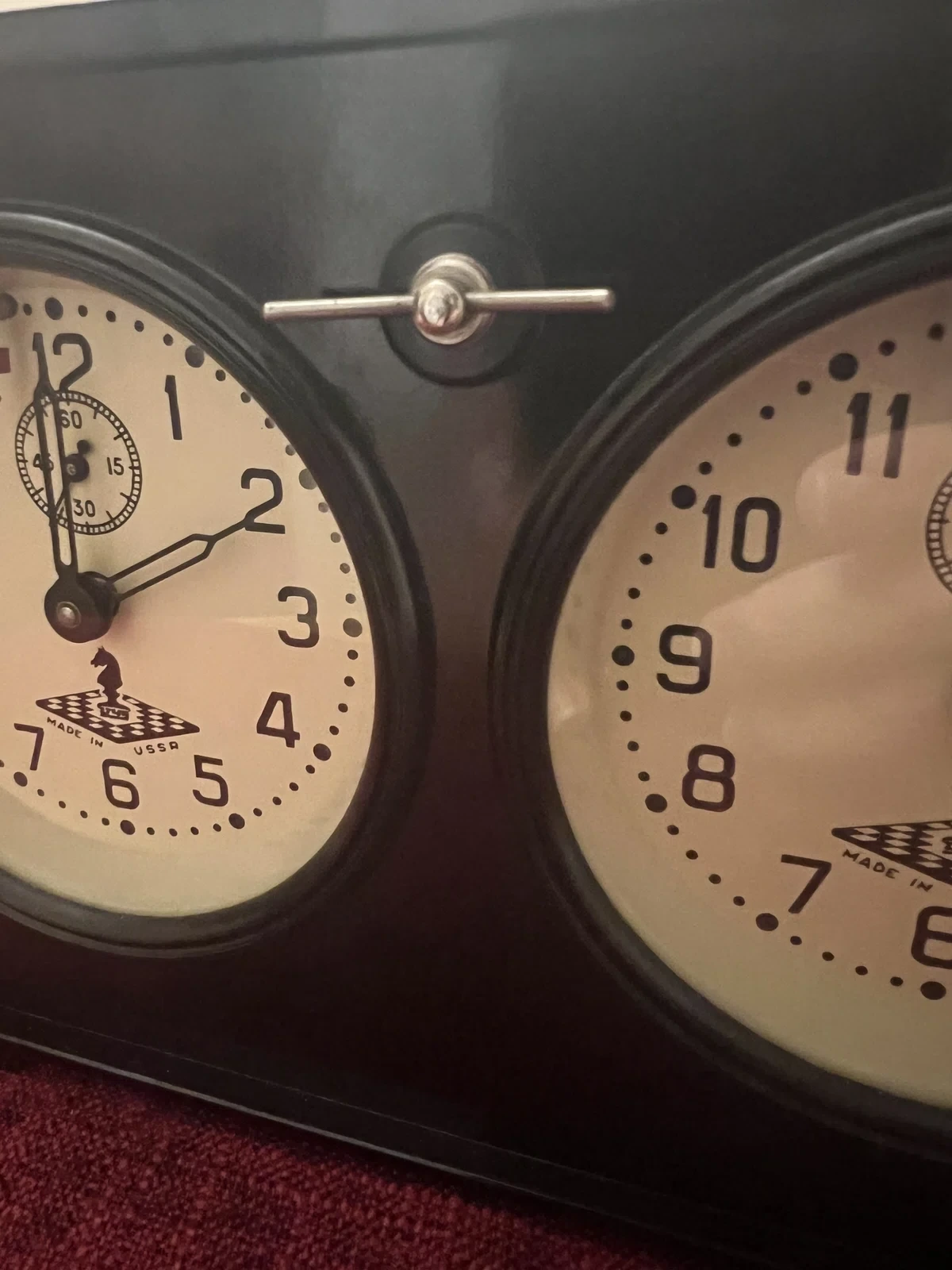

A player control transfers the running side. A separate stop or lock control creates a neutral state in which neither movement runs, or physically restrains the switching mechanism for transport. Those functions should not be confused.
Switching is Not the Same as Locking
Historical Significance
The control mechanism is where ordinary clockwork becomes a game interface. Studying it explains why two clocks with very different exteriors can belong to the same mechanical family—and why genuinely unusual systems stand out.
